Stock:
Distributor: 135
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 100000 | ₹ 55.14000 | ₹ 55,14,000.00 |
| 10000 | ₹ 65.81000 | ₹ 6,58,100.00 |
| 1000 | ₹ 73.81000 | ₹ 73,810.00 |
| 500 | ₹ 80.04000 | ₹ 40,020.00 |
| 100 | ₹ 88.93000 | ₹ 8,893.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | CoolSET®-F3r80 | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Output Electrical Isolation | Isolated | |
| Embedded Toggle Switches | Yes | |
| Breakdown Voltage Point | 800V | |
| Circuit Topology Design | Flyback | |
| Startup Voltage Threshold | 17 V | |
| Core Supply Voltage | 10.5V ~ 27V | |
| On-Off Ratio | 75% | |
| Switching Cycle Rate | 100kHz | |
| Wattage Power Level | 22 W | |
| Error Safeguard Features | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage, UVLO | |
| Adjustment Capabilities | Soft Start | |
| Ambient Temp Range | -20°C ~ 150°C (TJ) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |

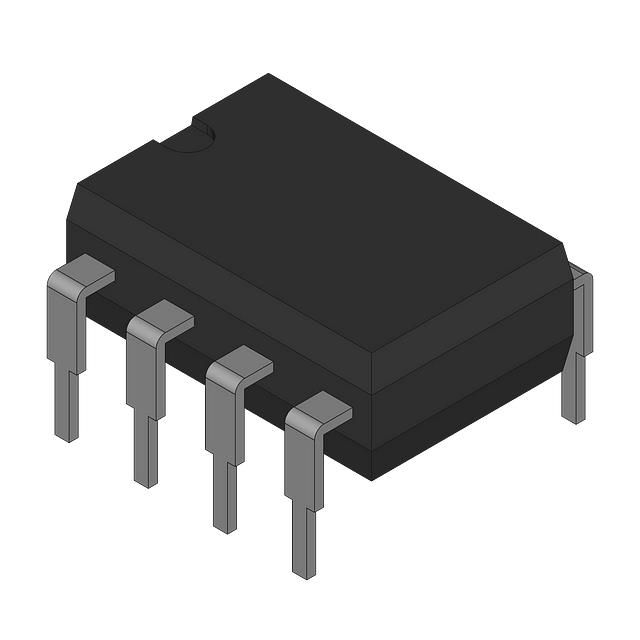

| Component Housing Style | 8-DIP (0.300", 7.62mm), 7 Leads | |
| Vendor Package Type | PG-DIP-7-4 | |
| Attachment Mounting Style | Through Hole |
Description
Is equipped with control features recognized as Soft Start. Shows the duty cycle represented as 75%. Features fault protection capabilities quantified at Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage, UVLO. Engineered for a 100kHz switching frequency ideal for high-speed electronic uses. Fitted with Yes internal switch(es) for reliable control. Mounting configuration Through Hole for structural stability. Temperature range -20°C ~ 150°C (TJ) for environmental conditions impacting thermal efficiency. Safeguard Isolated for maintaining output integrity and signal fidelity. Type of housing Bulk for safeguarding or transporting components. Style of the enclosure/case 8-DIP (0.300", 7.62mm), 7 Leads that offers mechanical and thermal protection. Type of package PG-DIP-7-4 that preserves the integrity of the device. Power measured in watts 22 W for optimal operation. Product status Active concerning availability and lifecycle. Classification series for the product or component CoolSET®-F3r80. Supplier package type PG-DIP-7-4 for component selection. Voltage requirement 10.5V ~ 27V for electrical specifications. Layout design Flyback for electrical systems or configurations. The breakdown voltage threshold 800V for component criteria. Starting voltage 17 V required for device activation. Vcc/Vdd voltage supply 10.5V ~ 27V for electronic devices.
