Stock:
Distributor: 111
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1000 | ₹ 157.49000 | ₹ 1,57,490.00 |
| 500 | ₹ 161.44000 | ₹ 80,720.00 |
| 250 | ₹ 165.95000 | ₹ 41,487.50 |
| 100 | ₹ 171.14000 | ₹ 17,114.00 |
| 50 | ₹ 177.15000 | ₹ 8,857.50 |
| 37 | ₹ 184.17000 | ₹ 6,814.29 |
Stock:
Distributor: 118
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 890 | ₹ 182.09000 | ₹ 1,62,060.10 |
| 397 | ₹ 200.30000 | ₹ 79,519.10 |
| 1 | ₹ 364.19000 | ₹ 364.19 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Obsolete | |
| Stepper Motor Variant | - | |
| AC/DC Motor Classification | Brushless DC (BLDC) | |
| Primary Function Mode | Driver | |
| Output Setup Options | Half Bridge (3) | |
| User Interface Type | Logic | |
| Core Technology Platform | DMOS | |
| Precision Step Size | - | |
| Intended Uses | - | |
| Output Delivery Amps | 3A | |
| Power Supply Voltage | 13V ~ 33V | |
| Output Load Voltage | 35V (Max) | |
| Ambient Temp Range | -20°C ~ 150°C (TJ) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

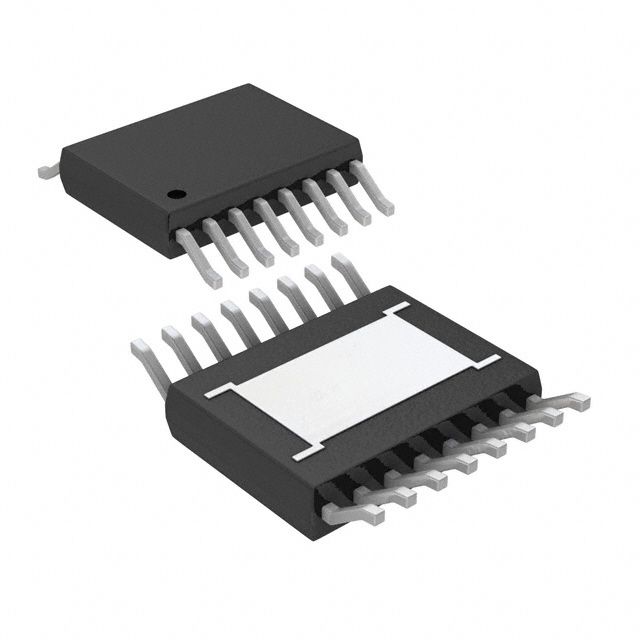

| Component Housing Style | 16-SOIC (0.295", 7.50mm Width) Exposed Pad | |
| Vendor Package Type | 16-HSOP |
Description
Yields output current measured at 3A. Engineered with Driver features for versatile component usage. Designed for Logic ease of use and user interaction. Classification of AC/DC motor Brushless DC (BLDC) for power compatibility. Mounting configuration Surface Mount for structural stability. Temperature range -20°C ~ 150°C (TJ) for environmental conditions impacting thermal efficiency. Preferences Half Bridge (3) for establishing system output configurations. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 16-SOIC (0.295", 7.50mm Width) Exposed Pad that offers mechanical and thermal protection. Type of package 16-HSOP that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Supplier package type 16-HSOP for component selection. Voltage requirement 13V ~ 33V for electrical specifications. The primary technology platform DMOS linked to the product category. Load voltage 35V (Max) required for devices. Voltage supply 13V ~ 33V for device operation.
