Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Obsolete | |
| Stepper Motor Variant | - | |
| AC/DC Motor Classification | Brushless DC (BLDC) | |
| Primary Function Mode | Driver - Fully Integrated, Control and Power Stage | |
| Output Setup Options | Half Bridge (3) | |
| User Interface Type | PWM | |
| Core Technology Platform | Power MOSFET | |
| Precision Step Size | - | |
| Intended Uses | General Purpose | |
| Output Delivery Amps | 1.5A | |
| Power Supply Voltage | 6V ~ 36V | |
| Output Load Voltage | 6V ~ 36V | |
| Ambient Temp Range | -40°C ~ 80°C (TA) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

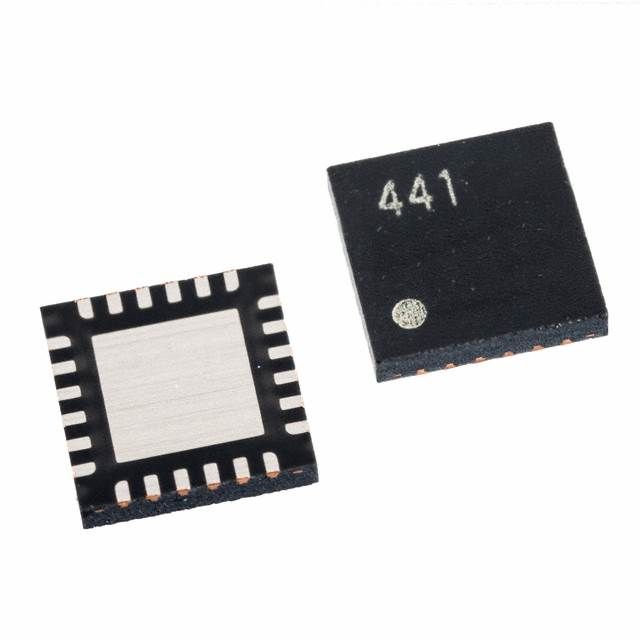

| Component Housing Style | 24-WFQFN Exposed Pad | |
| Vendor Package Type | 24-HQFN (4x4) |
Description
Perfectly designed for situations involving General Purpose. Yields output current measured at 1.5A. Engineered with Driver - Fully Integrated, Control and Power Stage features for versatile component usage. Designed for PWM ease of use and user interaction. Classification of AC/DC motor Brushless DC (BLDC) for power compatibility. Mounting configuration Surface Mount for structural stability. Temperature range -40°C ~ 80°C (TA) for environmental conditions impacting thermal efficiency. Preferences Half Bridge (3) for establishing system output configurations. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 24-WFQFN Exposed Pad that offers mechanical and thermal protection. Type of package 24-HQFN (4x4) that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Supplier package type 24-HQFN (4x4) for component selection. Voltage requirement 6V ~ 36V for electrical specifications. The primary technology platform Power MOSFET linked to the product category. Load voltage 6V ~ 36V required for devices. Voltage supply 6V ~ 36V for device operation.
