Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | TubeTube | |
| Availability Status | Obsolete | |
| Stepper Motor Variant | Unipolar | |
| AC/DC Motor Classification | - | |
| Primary Function Mode | Driver - Fully Integrated, Control and Power Stage | |
| Output Setup Options | Half Bridge (2) | |
| User Interface Type | Parallel | |
| Core Technology Platform | Power MOSFET | |
| Precision Step Size | 1, 1/2, 1/4, 1/8, 1/16 | |
| Intended Uses | General Purpose | |
| Output Delivery Amps | 2A | |
| Power Supply Voltage | 4.75V ~ 5.25V | |
| Output Load Voltage | 0V ~ 46V | |
| Ambient Temp Range | -20°C ~ 105°C (TC) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Through Hole | |

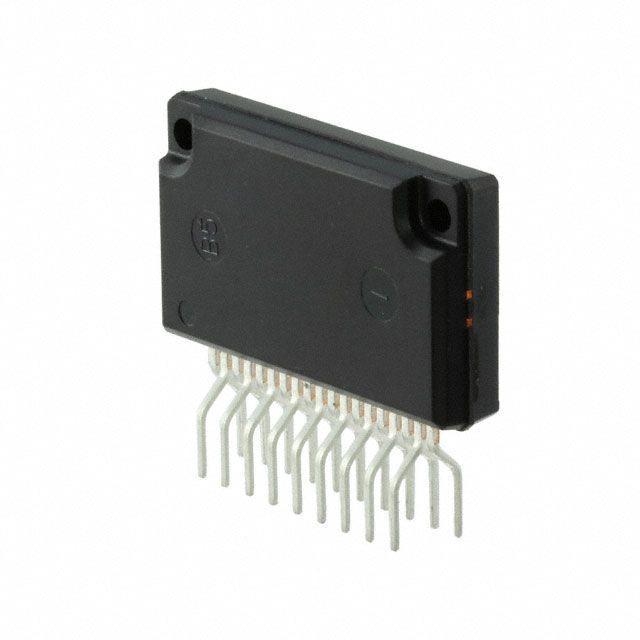

| Component Housing Style | 19-SSIP Formed Leads | |
| Vendor Package Type | 19-SIP |
Description
Perfectly designed for situations involving General Purpose. Yields output current measured at 2A. Engineered with Driver - Fully Integrated, Control and Power Stage features for versatile component usage. Designed for Parallel ease of use and user interaction. Type of stepper motor Unipolar for precise motion control. Mounting configuration Through Hole for structural stability. Temperature range -20°C ~ 105°C (TC) for environmental conditions impacting thermal efficiency. Preferences Half Bridge (2) for establishing system output configurations. Type of housing TubeTube for safeguarding or transporting components. Style of the enclosure/case 19-SSIP Formed Leads that offers mechanical and thermal protection. Type of package 19-SIP that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Step size 1, 1/2, 1/4, 1/8, 1/16 for precise movement. Supplier package type 19-SIP for component selection. Voltage requirement 4.75V ~ 5.25V for electrical specifications. The primary technology platform Power MOSFET linked to the product category. Load voltage 0V ~ 46V required for devices. Voltage supply 4.75V ~ 5.25V for device operation.
