Stock:
Distributor: 135
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 10000 | ₹ 159.31000 | ₹ 15,93,100.00 |
| 1000 | ₹ 169.10000 | ₹ 1,69,100.00 |
| 500 | ₹ 179.78000 | ₹ 89,890.00 |
| 100 | ₹ 189.57000 | ₹ 18,957.00 |
| 25 | ₹ 199.36000 | ₹ 4,984.00 |
Stock:
Distributor: 160
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 10000 | ₹ 159.31000 | ₹ 15,93,100.00 |
| 1000 | ₹ 169.10000 | ₹ 1,69,100.00 |
| 500 | ₹ 179.78000 | ₹ 89,890.00 |
| 100 | ₹ 189.57000 | ₹ 18,957.00 |
| 25 | ₹ 199.36000 | ₹ 4,984.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tube | |
| Availability Status | Obsolete | |
| Stepper Motor Variant | Unipolar | |
| AC/DC Motor Classification | - | |
| Primary Function Mode | Driver - Fully Integrated, Control and Power Stage | |
| Output Setup Options | - | |
| User Interface Type | Parallel | |
| Core Technology Platform | Bi-Level | |
| Precision Step Size | 1, 1/2 | |
| Intended Uses | General Purpose | |
| Output Delivery Amps | 350mA | |
| Power Supply Voltage | 4.75V ~ 5.25V | |
| Output Load Voltage | 10V ~ 40V | |
| Ambient Temp Range | -20°C ~ 125°C (TJ) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Through Hole | |

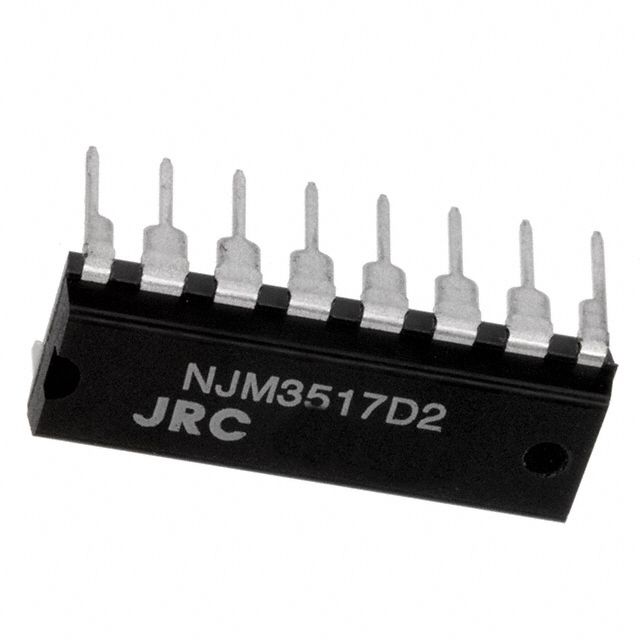

| Component Housing Style | 16-DIP (0.325", 8.25mm) | |
| Vendor Package Type | 16-DIP |
Description
Perfectly designed for situations involving General Purpose. Yields output current measured at 350mA. Engineered with Driver - Fully Integrated, Control and Power Stage features for versatile component usage. Designed for Parallel ease of use and user interaction. Type of stepper motor Unipolar for precise motion control. Mounting configuration Through Hole for structural stability. Temperature range -20°C ~ 125°C (TJ) for environmental conditions impacting thermal efficiency. Type of housing Tube for safeguarding or transporting components. Style of the enclosure/case 16-DIP (0.325", 8.25mm) that offers mechanical and thermal protection. Type of package 16-DIP that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Step size 1, 1/2 for precise movement. Supplier package type 16-DIP for component selection. Voltage requirement 4.75V ~ 5.25V for electrical specifications. The primary technology platform Bi-Level linked to the product category. Load voltage 10V ~ 40V required for devices. Voltage supply 4.75V ~ 5.25V for device operation.
