Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | HC11 | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Obsolete | |
| Central CPU Unit | HC11 | |
| Processor Core Dimensions | 8-Bit | |
| Operational Speed Rating | 4MHz | |
| Interconnect Options | SCI, SPI | |
| External Device Support | POR, PWM, WDT | |
| Input/Output Port Count | 37 | |
| Firmware Storage Capacity | - | |
| Code Storage Technology | ROMless | |
| Non-Volatile Memory Capacity | 640 x 8 | |
| Random Access Memory Bytes | 768 x 8 | |
| Core Supply Voltage | 4.5V ~ 5.5V | |
| Analog-Digital Transformers | A/D 8x8b | |
| Frequency Generator Category | Internal | |
| Ambient Temp Range | -40°C ~ 85°C (TA) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

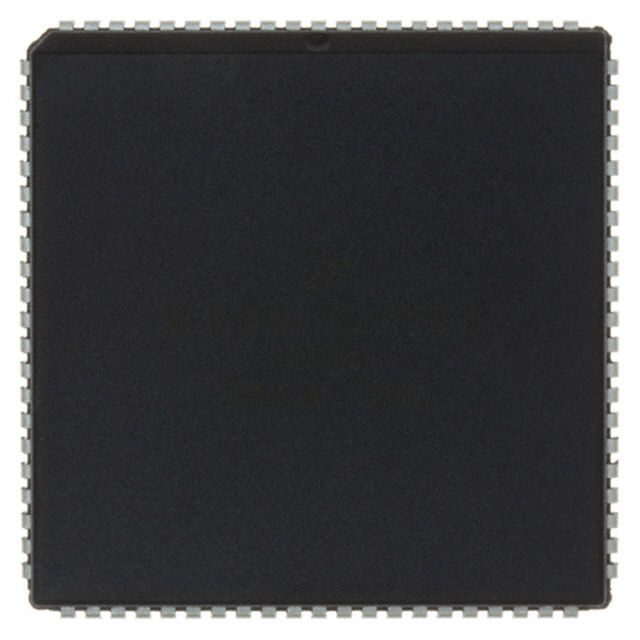

| Vendor Package Type | 84-PLCC (29.29x29.29) | |
| Component Housing Style | 84-LCC (J-Lead) |
Description
Presents connection choices defined by SCI, SPI for seamless integration. Includes the core processor identified as HC11 for swift processing. Designed with core dimensions specified as 8-Bit. Comprises data converters classified as A/D 8x8b. Represents EEPROM capacity measured at 640 x 8. Mounting configuration Surface Mount for structural stability. Overall I/O 37 for electronic connections. Temperature range -40°C ~ 85°C (TA) for environmental conditions impacting thermal efficiency. Type of generator Internal for generating frequency. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 84-LCC (J-Lead) that offers mechanical and thermal protection. Type of package 84-PLCC (29.29x29.29) that preserves the integrity of the device. Support for external devices POR, PWM, WDT for system integration and improvement. Product status Obsolete concerning availability and lifecycle. Storage medium ROMless for program retention. The total size of RAM 768 x 8 for system or device specifications. Classification series for the product or component HC11. Operational speed 4MHz for mechanical or data tasks. Supplier package type 84-PLCC (29.29x29.29) for component selection. Voltage requirement 4.5V ~ 5.5V for electrical specifications. Vcc/Vdd voltage supply 4.5V ~ 5.5V for electronic devices.
