Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | LPC2100 | |
| IC Encapsulation Type | Tray | |
| Availability Status | Obsolete | |
| Central CPU Unit | ARM7® | |
| Processor Core Dimensions | 16/32-Bit | |
| Operational Speed Rating | 60MHz | |
| Interconnect Options | I2C, Microwire, SPI, SSI, SSP, UART/USART | |
| External Device Support | Brown-out Detect/Reset, POR, PWM, WDT | |
| Input/Output Port Count | 47 | |
| Firmware Storage Capacity | 64KB (64K x 8) | |
| Code Storage Technology | FLASH | |
| Non-Volatile Memory Capacity | - | |
| Random Access Memory Bytes | 16K x 8 | |
| Core Supply Voltage | 3V ~ 3.6V | |
| Analog-Digital Transformers | A/D 8x10b SAR; D/A 1x10b | |
| Frequency Generator Category | Internal | |
| Ambient Temp Range | -40°C ~ 85°C (TA) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

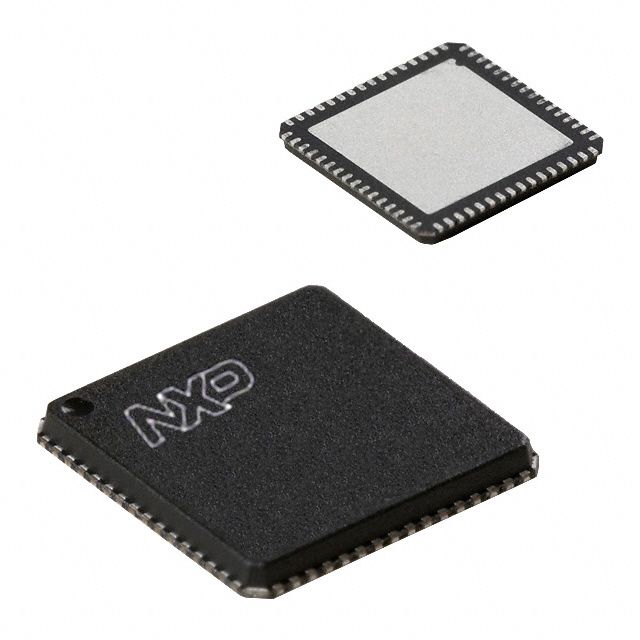

| Vendor Package Type | 64-HVQFN (9x9) | |
| Component Housing Style | 64-VFQFN Exposed Pad |
Description
Presents connection choices defined by I2C, Microwire, SPI, SSI, SSP, UART/USART for seamless integration. Includes the core processor identified as ARM7® for swift processing. Designed with core dimensions specified as 16/32-Bit. Comprises data converters classified as A/D 8x10b SAR; D/A 1x10b. Mounting configuration Surface Mount for structural stability. Overall I/O 47 for electronic connections. Temperature range -40°C ~ 85°C (TA) for environmental conditions impacting thermal efficiency. Type of generator Internal for generating frequency. Type of housing Tray for safeguarding or transporting components. Style of the enclosure/case 64-VFQFN Exposed Pad that offers mechanical and thermal protection. Type of package 64-HVQFN (9x9) that preserves the integrity of the device. Support for external devices Brown-out Detect/Reset, POR, PWM, WDT for system integration and improvement. Product status Obsolete concerning availability and lifecycle. Firmware storage size 64KB (64K x 8) for memory capacity. Storage medium FLASH for program retention. The total size of RAM 16K x 8 for system or device specifications. Classification series for the product or component LPC2100. Operational speed 60MHz for mechanical or data tasks. Supplier package type 64-HVQFN (9x9) for component selection. Voltage requirement 3V ~ 3.6V for electrical specifications. Vcc/Vdd voltage supply 3V ~ 3.6V for electronic devices.
