Stock:
Distributor: 116
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 80000 | ₹ 11.22000 | ₹ 8,97,600.00 |
| 40000 | ₹ 11.41000 | ₹ 4,56,400.00 |
| 20000 | ₹ 11.71000 | ₹ 2,34,200.00 |
| 10000 | ₹ 12.02000 | ₹ 1,20,200.00 |
| 5000 | ₹ 12.72000 | ₹ 63,600.00 |
Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 50000 | ₹ 11.82000 | ₹ 5,91,000.00 |
| 35000 | ₹ 11.92000 | ₹ 4,17,200.00 |
| 25000 | ₹ 12.02000 | ₹ 3,00,500.00 |
| 15000 | ₹ 12.20000 | ₹ 1,83,000.00 |
| 10000 | ₹ 12.36000 | ₹ 1,23,600.00 |
| 5000 | ₹ 12.69000 | ₹ 63,450.00 |
| 2500 | ₹ 13.08000 | ₹ 32,700.00 |
| 1000 | ₹ 13.73000 | ₹ 13,730.00 |
| 500 | ₹ 14.36000 | ₹ 7,180.00 |
| 250 | ₹ 15.10000 | ₹ 3,775.00 |
| 100 | ₹ 16.35000 | ₹ 1,635.00 |
| 25 | ₹ 18.97000 | ₹ 474.25 |
| 10 | ₹ 21.36000 | ₹ 213.60 |
| 1 | ₹ 31.15000 | ₹ 31.15 |
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 31.15000 | ₹ 31.15 |
| 10 | ₹ 21.36000 | ₹ 213.60 |
| 25 | ₹ 19.05000 | ₹ 476.25 |
| 100 | ₹ 16.38000 | ₹ 1,638.00 |
| 250 | ₹ 15.13000 | ₹ 3,782.50 |
| 5000 | ₹ 12.64000 | ₹ 63,200.00 |
| 10000 | ₹ 11.93000 | ₹ 1,19,300.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | TCR13AG | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Output Setup Options | Positive | |
| Exit Signal Category | Adjustable | |
| Voltage Regulator Count | 1 | |
| Maximum Input Voltage | 6V | |
| Minimum Fixed Output | 0.55V | |
| Peak Output Voltage | 3.6V | |
| Maximum Dropout Voltage | 0.163V @ 1A | |
| Output Delivery Amps | 1.3A | |
| Standby Current Draw | 92 µA | |
| Maximum Supply Current | - | |
| Power Supply Rejection Ratio | 90dB (1kHz) | |
| Adjustment Capabilities | Enable | |
| Built-In Safeguards | Inrush Current, Over Current, Thermal Shutdown, UVLO | |
| Ambient Temp Range | -40°C ~ 85°C (TJ) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

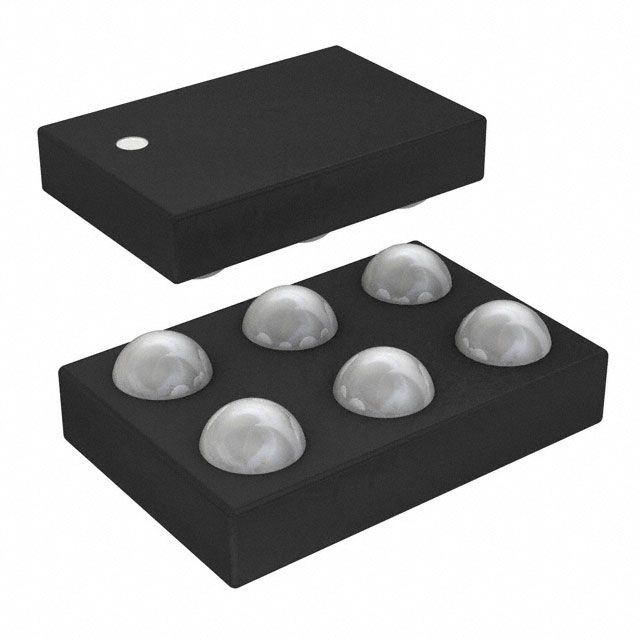

| Component Housing Style | 6-XFBGA, WLCSP | |
| Vendor Package Type | 6-WCSP (1.2x0.80) |
Description
Is equipped with control features recognized as Enable. Yields output current measured at 1.3A. Accommodates quiescent current Iq rated at 92 µA. The input voltage established at 6V for reliable performance. Mounting configuration Surface Mount for structural stability. Overall number of regulators 1 for voltage or current management. Temperature range -40°C ~ 85°C (TJ) for environmental conditions impacting thermal efficiency. Preferences Positive for establishing system output configurations. Type Adjustable for ensuring compatibility with output systems. Voltage 3.6V for optimal output electric potential. Indicator of power supply rejection 90dB (1kHz) to maintain voltage stability. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 6-XFBGA, WLCSP that offers mechanical and thermal protection. Type of package 6-WCSP (1.2x0.80) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Integrated safety features Inrush Current, Over Current, Thermal Shutdown, UVLO for reliability and compliance. Classification series for the product or component TCR13AG. Supplier package type 6-WCSP (1.2x0.80) for component selection. Maximum input voltage 6V for safeguarding. The maximum output voltage 3.6V for devices. The lowest or steady output voltage 0.55V for circuits. Maximum dropout voltage 0.163V @ 1A for voltage regulation systems.
