Description

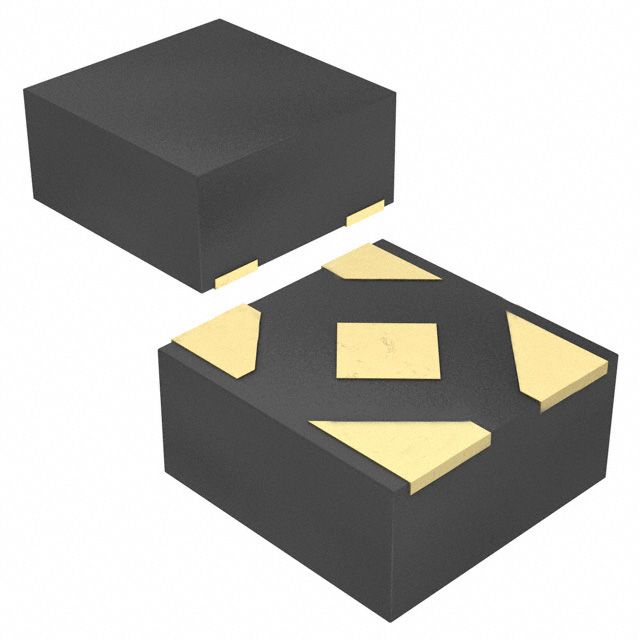

Facilitates a maximum output current level set as 32mA, 32mA. Offers information on high and low output current settings at 32mA, 32mA. Provides maximum quiescent current of 10 µA. The high logic threshold defined at 1.7V ~ 2V for detecting digital circuits. The low logic threshold indicated at 0.7V ~ 0.8V for accurate digital input detection. The type of logic NOR Gate that guarantees maximum compatibility in electronic design. Maximum signal delay 4.5ns @ 5V, 50pF at voltage and max CL for precise digital circuits. Mounting configuration Surface Mount for structural stability. The total number of circuits stands at 1 for electrical or electronic setups. Overall inputs 2 for sensors or equipment. Temperature range -40°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel®Bulk for safeguarding or transporting components. Style of the enclosure/case 4-XFDFN Exposed Pad that offers mechanical and thermal protection. Type of package 4-X2SON (0.8x0.8) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Classification series for the product or component 74LVC. Dimensions of the shell NOR Gate for connectors or enclosures. Supplier package type 4-X2SON (0.8x0.8) for component selection. Voltage requirement 1.65V ~ 5.5V for electrical specifications. Voltage supply 1.65V ~ 5.5V for device operation.
