Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | 74AC | |
| IC Encapsulation Type | Tube | |
| Availability Status | Obsolete | |
| Digital Logic Family | Inverter | |
| Electrical Circuit Count | 6 | |
| Signal Input Quantity | 6 | |
| Key Product Highlights | Schmitt Trigger | |
| Power Supply Voltage | 2V ~ 6V | |
| Maximum Idle Current | 2 µA | |
| High/Low Logic Current | 24mA, 24mA | |
| Low Logic Voltage Threshold | 1V ~ 2.3V | |
| High Logic Voltage Threshold | 2.2V ~ 3.9V | |
| Worst-Case Signal Delay | 10ns @ 5V, 50pF | |
| Ambient Temp Range | -40°C ~ 85°C | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |
| Vendor Package Type | 14-SO | |

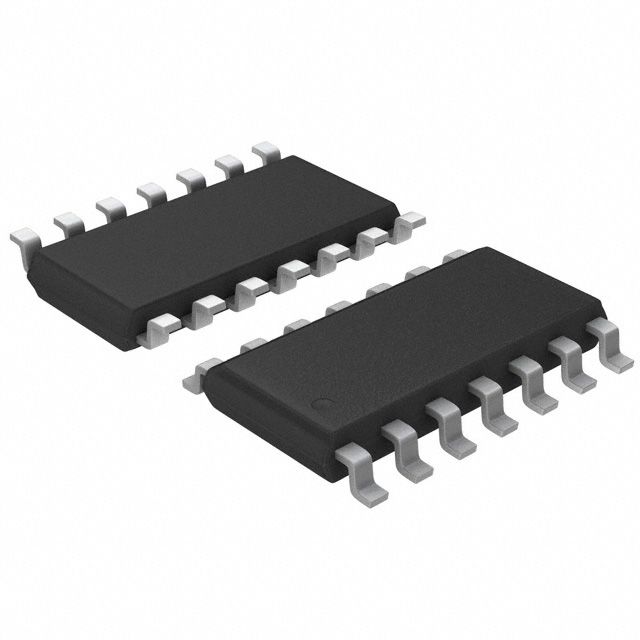

| Component Housing Style | 14-SOIC (0.209", 5.30mm Width) |
Description
Facilitates a maximum output current level set as 24mA, 24mA. Offers information on high and low output current settings at 24mA, 24mA. Provides maximum quiescent current of 2 µA. Equipped with features categorized as Schmitt Trigger. The high logic threshold defined at 2.2V ~ 3.9V for detecting digital circuits. The low logic threshold indicated at 1V ~ 2.3V for accurate digital input detection. The type of logic Inverter that guarantees maximum compatibility in electronic design. Maximum signal delay 10ns @ 5V, 50pF at voltage and max CL for precise digital circuits. Mounting configuration Surface Mount for structural stability. The total number of circuits stands at 6 for electrical or electronic setups. Overall inputs 6 for sensors or equipment. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Tube for safeguarding or transporting components. Style of the enclosure/case 14-SOIC (0.209", 5.30mm Width) that offers mechanical and thermal protection. Type of package 14-SO that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component 74AC. Dimensions of the shell Inverter for connectors or enclosures. Supplier package type 14-SO for component selection. Voltage requirement 2V ~ 6V for electrical specifications. Voltage supply 2V ~ 6V for device operation.
