Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | 5400 | |
| IC Encapsulation Type | Tube | |
| Availability Status | Active | |
| Digital Logic Family | NAND Gate | |
| Electrical Circuit Count | 4 | |
| Signal Input Quantity | 2 | |
| Key Product Highlights | - | |
| Power Supply Voltage | 4.5V ~ 5.5V | |
| Maximum Idle Current | 22 mA | |
| High/Low Logic Current | 400µA, 16mA | |
| Low Logic Voltage Threshold | 0.8V | |
| High Logic Voltage Threshold | 2V | |
| Worst-Case Signal Delay | 22ns @ 5V, 15pF | |
| Ambient Temp Range | -55°C ~ 125°C | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Through Hole | |
| Vendor Package Type | 14-CDIP | |

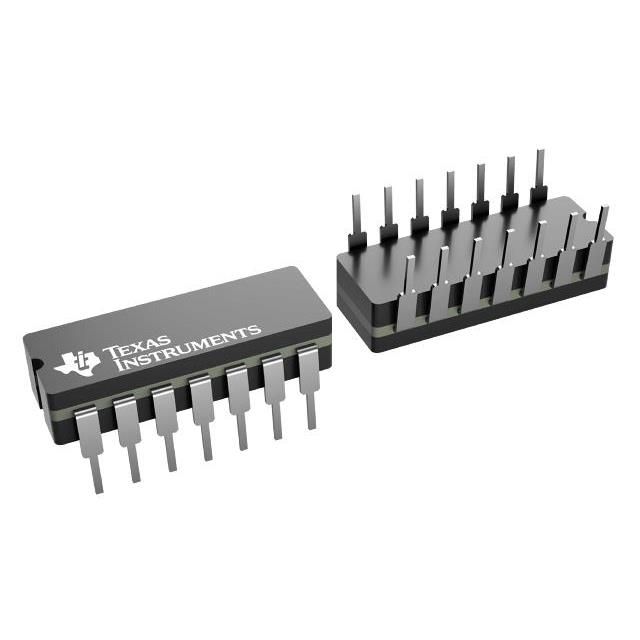

| Component Housing Style | 14-CDIP (0.300", 7.62mm) |
Description
Facilitates a maximum output current level set as 400µA, 16mA. Offers information on high and low output current settings at 400µA, 16mA. Provides maximum quiescent current of 22 mA. The high logic threshold defined at 2V for detecting digital circuits. The low logic threshold indicated at 0.8V for accurate digital input detection. The type of logic NAND Gate that guarantees maximum compatibility in electronic design. Maximum signal delay 22ns @ 5V, 15pF at voltage and max CL for precise digital circuits. Mounting configuration Through Hole for structural stability. The total number of circuits stands at 4 for electrical or electronic setups. Overall inputs 2 for sensors or equipment. Temperature range -55°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Tube for safeguarding or transporting components. Style of the enclosure/case 14-CDIP (0.300", 7.62mm) that offers mechanical and thermal protection. Type of package 14-CDIP that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Classification series for the product or component 5400. Dimensions of the shell NAND Gate for connectors or enclosures. Supplier package type 14-CDIP for component selection. Voltage requirement 4.5V ~ 5.5V for electrical specifications. Voltage supply 4.5V ~ 5.5V for device operation.
