Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | 74AUP | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Obsolete | |
| Digital Logic Family | Inverter | |
| Electrical Circuit Count | 1 | |
| Signal Input Quantity | 1 | |
| Key Product Highlights | - | |
| Power Supply Voltage | 1.2V ~ 3.6V | |
| Maximum Idle Current | 100 nA | |
| High/Low Logic Current | 10mA, 10mA | |
| Low Logic Voltage Threshold | 0.7V ~ 0.8V | |
| High Logic Voltage Threshold | 1.6V ~ 2V | |
| Worst-Case Signal Delay | 3.8ns @ 3.3V, 30pF | |
| Ambient Temp Range | -40°C ~ 85°C | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

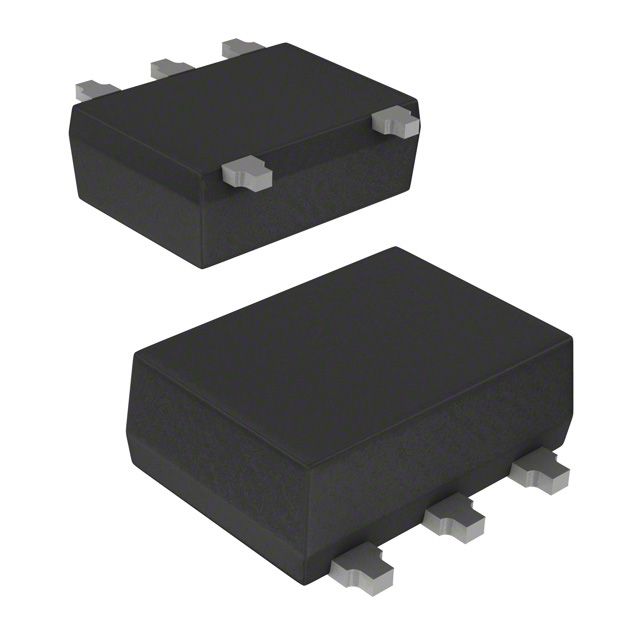

| Vendor Package Type | SOT-665 | |
| Component Housing Style | SOT-665 |
Description
Facilitates a maximum output current level set as 10mA, 10mA. Offers information on high and low output current settings at 10mA, 10mA. Provides maximum quiescent current of 100 nA. The high logic threshold defined at 1.6V ~ 2V for detecting digital circuits. The low logic threshold indicated at 0.7V ~ 0.8V for accurate digital input detection. The type of logic Inverter that guarantees maximum compatibility in electronic design. Maximum signal delay 3.8ns @ 3.3V, 30pF at voltage and max CL for precise digital circuits. Mounting configuration Surface Mount for structural stability. The total number of circuits stands at 1 for electrical or electronic setups. Overall inputs 1 for sensors or equipment. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case SOT-665 that offers mechanical and thermal protection. Type of package SOT-665 that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component 74AUP. Dimensions of the shell Inverter for connectors or enclosures. Supplier package type SOT-665 for component selection. Voltage requirement 1.2V ~ 3.6V for electrical specifications. Voltage supply 1.2V ~ 3.6V for device operation.
