Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | 74LVC | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Digital Logic Family | AND Gate | |
| Electrical Circuit Count | 1 | |
| Signal Input Quantity | 3 | |
| Key Product Highlights | - | |
| Power Supply Voltage | 1.65V ~ 5.5V | |
| Maximum Idle Current | 4 µA | |
| High/Low Logic Current | 32mA, 32mA | |
| Low Logic Voltage Threshold | 0.7V ~ 0.8V | |
| High Logic Voltage Threshold | 1.7V ~ 2V | |
| Worst-Case Signal Delay | 4.4ns @ 5V, 50pF | |
| Ambient Temp Range | -40°C ~ 125°C | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |
| Vendor Package Type | 6-TSOP | |

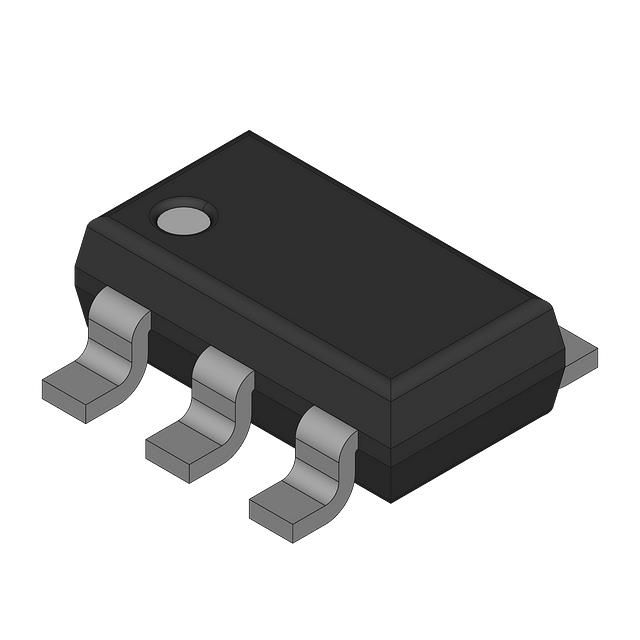

| Component Housing Style | SOT-23-6 Thin, TSOT-23-6 |
Description
Facilitates a maximum output current level set as 32mA, 32mA. Offers information on high and low output current settings at 32mA, 32mA. Provides maximum quiescent current of 4 µA. The high logic threshold defined at 1.7V ~ 2V for detecting digital circuits. The low logic threshold indicated at 0.7V ~ 0.8V for accurate digital input detection. The type of logic AND Gate that guarantees maximum compatibility in electronic design. Maximum signal delay 4.4ns @ 5V, 50pF at voltage and max CL for precise digital circuits. Mounting configuration Surface Mount for structural stability. The total number of circuits stands at 1 for electrical or electronic setups. Overall inputs 3 for sensors or equipment. Temperature range -40°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Style of the enclosure/case SOT-23-6 Thin, TSOT-23-6 that offers mechanical and thermal protection. Type of package 6-TSOP that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Classification series for the product or component 74LVC. Dimensions of the shell AND Gate for connectors or enclosures. Supplier package type 6-TSOP for component selection. Voltage requirement 1.65V ~ 5.5V for electrical specifications. Voltage supply 1.65V ~ 5.5V for device operation.
