Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | 74HC | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Digital Logic Family | XOR (Exclusive OR) | |
| Electrical Circuit Count | 4 | |
| Signal Input Quantity | 2 | |
| Key Product Highlights | - | |
| Power Supply Voltage | 2V ~ 6V | |
| Maximum Idle Current | 2 µA | |
| High/Low Logic Current | 5.2mA, 5.2mA | |
| Low Logic Voltage Threshold | 0.5V ~ 1.8V | |
| High Logic Voltage Threshold | 1.5V ~ 4.2V | |
| Worst-Case Signal Delay | 20ns @ 6V, 50pF | |
| Ambient Temp Range | -40°C ~ 125°C | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |
| Vendor Package Type | 14-SO | |

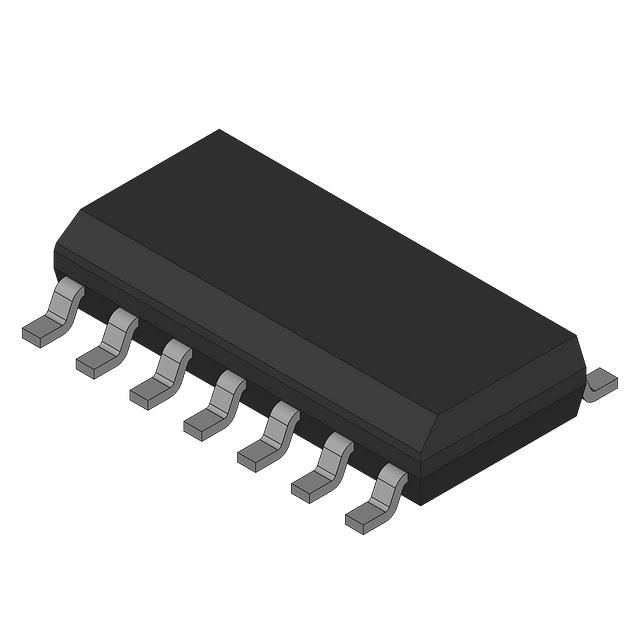

| Component Housing Style | 14-SOIC (0.154", 3.90mm Width) |
Description
Facilitates a maximum output current level set as 5.2mA, 5.2mA. Offers information on high and low output current settings at 5.2mA, 5.2mA. Provides maximum quiescent current of 2 µA. The high logic threshold defined at 1.5V ~ 4.2V for detecting digital circuits. The low logic threshold indicated at 0.5V ~ 1.8V for accurate digital input detection. The type of logic XOR (Exclusive OR) that guarantees maximum compatibility in electronic design. Maximum signal delay 20ns @ 6V, 50pF at voltage and max CL for precise digital circuits. Mounting configuration Surface Mount for structural stability. The total number of circuits stands at 4 for electrical or electronic setups. Overall inputs 2 for sensors or equipment. Temperature range -40°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Style of the enclosure/case 14-SOIC (0.154", 3.90mm Width) that offers mechanical and thermal protection. Type of package 14-SO that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Classification series for the product or component 74HC. Dimensions of the shell XOR (Exclusive OR) for connectors or enclosures. Supplier package type 14-SO for component selection. Voltage requirement 2V ~ 6V for electrical specifications. Voltage supply 2V ~ 6V for device operation.
