Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | 74HC | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Digital Logic Family | OR Gate | |
| Electrical Circuit Count | 4 | |
| Signal Input Quantity | 2 | |
| Key Product Highlights | - | |
| Power Supply Voltage | 2V ~ 6V | |
| Maximum Idle Current | 2 µA | |
| High/Low Logic Current | 5.2mA, 5.2mA | |
| Low Logic Voltage Threshold | 0.5V ~ 1.8V | |
| High Logic Voltage Threshold | 1.5V ~ 4.2V | |
| Worst-Case Signal Delay | 15ns @ 6V, 50pF | |
| Ambient Temp Range | -40°C ~ 125°C | |
| Quality Grade Level | Automotive | |
| Certification Qualification | AEC-Q100 | |
| Attachment Mounting Style | Surface Mount | |

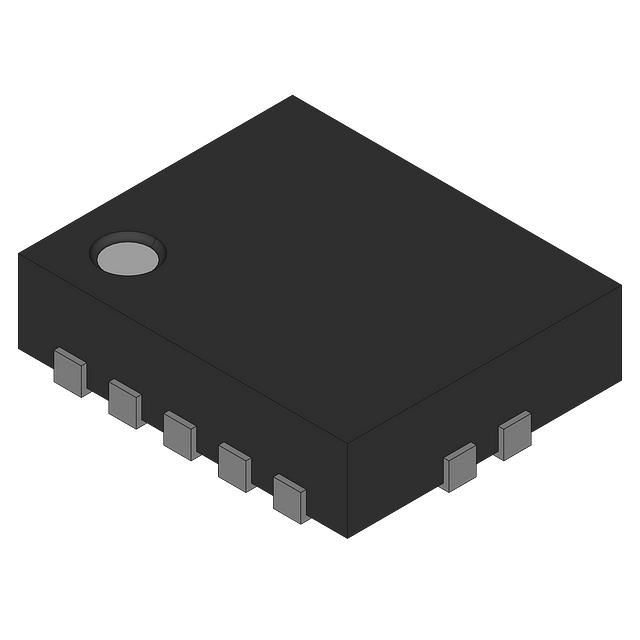

| Vendor Package Type | 14-DHVQFN (2.5x3) | |
| Component Housing Style | 14-VFQFN Exposed Pad |
Description
Facilitates a maximum output current level set as 5.2mA, 5.2mA. Offers information on high and low output current settings at 5.2mA, 5.2mA. Provides maximum quiescent current of 2 µA. Evaluated as Automotive grade for quality control. The high logic threshold defined at 1.5V ~ 4.2V for detecting digital circuits. The low logic threshold indicated at 0.5V ~ 1.8V for accurate digital input detection. The type of logic OR Gate that guarantees maximum compatibility in electronic design. Maximum signal delay 15ns @ 6V, 50pF at voltage and max CL for precise digital circuits. Mounting configuration Surface Mount for structural stability. The total number of circuits stands at 4 for electrical or electronic setups. Overall inputs 2 for sensors or equipment. Temperature range -40°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Style of the enclosure/case 14-VFQFN Exposed Pad that offers mechanical and thermal protection. Type of package 14-DHVQFN (2.5x3) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Certification AEC-Q100 for compliance with testing or regulatory standards. Classification series for the product or component 74HC. Dimensions of the shell OR Gate for connectors or enclosures. Supplier package type 14-DHVQFN (2.5x3) for component selection. Voltage requirement 2V ~ 6V for electrical specifications. Voltage supply 2V ~ 6V for device operation.
