Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | 74AUP | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Digital Logic Family | Inverter | |
| Electrical Circuit Count | 1 | |
| Signal Input Quantity | 1 | |
| Key Product Highlights | Open Drain | |
| Power Supply Voltage | 0.8V ~ 3.6V | |
| Maximum Idle Current | 500 nA | |
| High/Low Logic Current | -, 4mA | |
| Low Logic Voltage Threshold | 0.7V ~ 0.9V | |
| High Logic Voltage Threshold | 1.6V ~ 2V | |
| Worst-Case Signal Delay | 10.5ns @ 3.3V, 30pF | |
| Ambient Temp Range | -40°C ~ 125°C | |
| Quality Grade Level | Automotive | |
| Certification Qualification | AEC-Q100 | |
| Attachment Mounting Style | Surface Mount | |

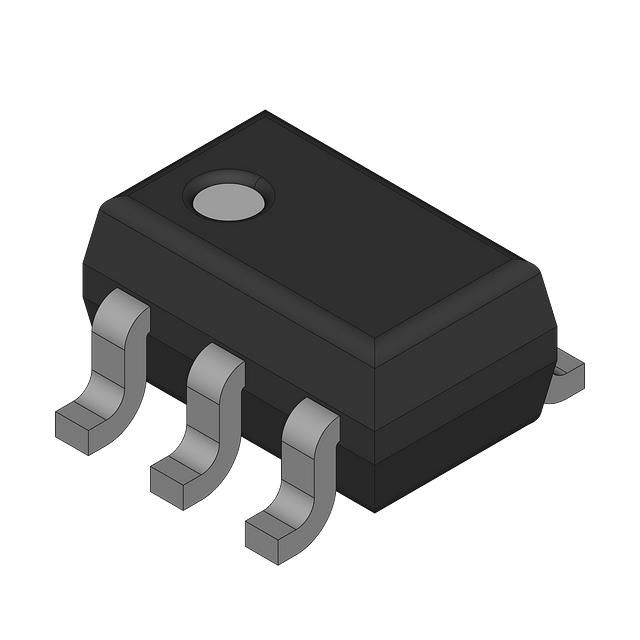

| Vendor Package Type | 5-TSSOP | |
| Component Housing Style | 5-TSSOP, SC-70-5, SOT-353 |
Description
Facilitates a maximum output current level set as -, 4mA. Offers information on high and low output current settings at -, 4mA. Provides maximum quiescent current of 500 nA. Equipped with features categorized as Open Drain. Evaluated as Automotive grade for quality control. The high logic threshold defined at 1.6V ~ 2V for detecting digital circuits. The low logic threshold indicated at 0.7V ~ 0.9V for accurate digital input detection. The type of logic Inverter that guarantees maximum compatibility in electronic design. Maximum signal delay 10.5ns @ 3.3V, 30pF at voltage and max CL for precise digital circuits. Mounting configuration Surface Mount for structural stability. The total number of circuits stands at 1 for electrical or electronic setups. Overall inputs 1 for sensors or equipment. Temperature range -40°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Style of the enclosure/case 5-TSSOP, SC-70-5, SOT-353 that offers mechanical and thermal protection. Type of package 5-TSSOP that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Certification AEC-Q100 for compliance with testing or regulatory standards. Classification series for the product or component 74AUP. Dimensions of the shell Inverter for connectors or enclosures. Supplier package type 5-TSSOP for component selection. Voltage requirement 0.8V ~ 3.6V for electrical specifications. Voltage supply 0.8V ~ 3.6V for device operation.
