Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Obsolete | |
| Digital Logic Family | Inverter | |
| Electrical Circuit Count | 6 | |
| Signal Input Quantity | 6 | |
| Key Product Highlights | Schmitt Trigger | |
| Power Supply Voltage | 4.5V ~ 5.5V | |
| Maximum Idle Current | 2 µA | |
| High/Low Logic Current | 4mA, 4mA | |
| Low Logic Voltage Threshold | 1.2V ~ 1.4V | |
| High Logic Voltage Threshold | 1.9V ~ 2.1V | |
| Worst-Case Signal Delay | 34ns @ 4.5V, 50pF | |
| Ambient Temp Range | -40°C ~ 125°C | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

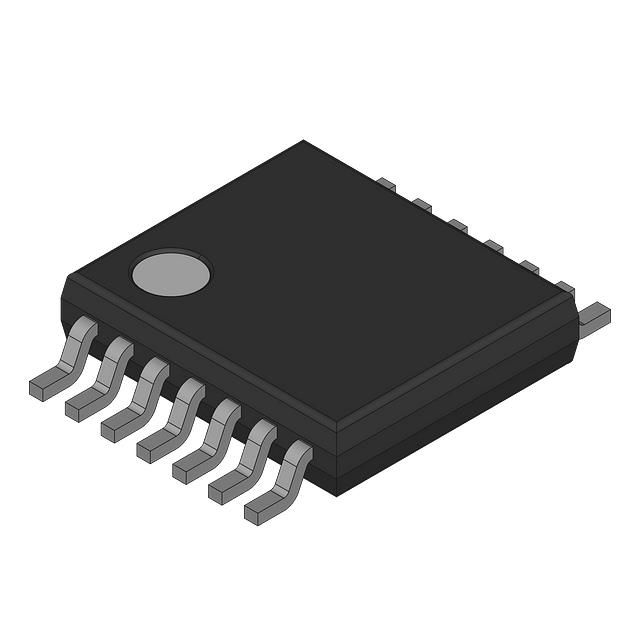

| Vendor Package Type | 14-TSSOP | |
| Component Housing Style | 14-TSSOP (0.173", 4.40mm Width) |
Description
Facilitates a maximum output current level set as 4mA, 4mA. Offers information on high and low output current settings at 4mA, 4mA. Provides maximum quiescent current of 2 µA. Equipped with features categorized as Schmitt Trigger. The high logic threshold defined at 1.9V ~ 2.1V for detecting digital circuits. The low logic threshold indicated at 1.2V ~ 1.4V for accurate digital input detection. The type of logic Inverter that guarantees maximum compatibility in electronic design. Maximum signal delay 34ns @ 4.5V, 50pF at voltage and max CL for precise digital circuits. Mounting configuration Surface Mount for structural stability. The total number of circuits stands at 6 for electrical or electronic setups. Overall inputs 6 for sensors or equipment. Temperature range -40°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Style of the enclosure/case 14-TSSOP (0.173", 4.40mm Width) that offers mechanical and thermal protection. Type of package 14-TSSOP that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Dimensions of the shell Inverter for connectors or enclosures. Supplier package type 14-TSSOP for component selection. Voltage requirement 4.5V ~ 5.5V for electrical specifications. Voltage supply 4.5V ~ 5.5V for device operation.
