Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |

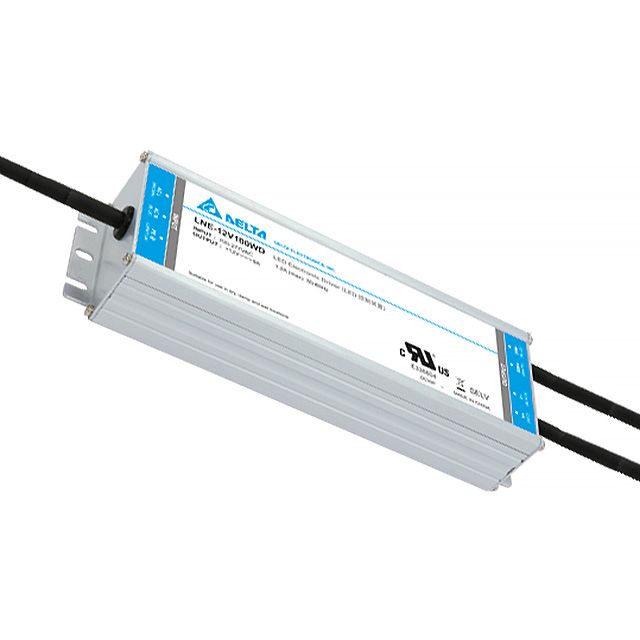

| Product Series Line | LNE-100W | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Obsolete | |
| Device Type Classification | Constant Current, Voltage | |
| Circuit Topology Design | AC DC Converter | |
| Signal Output Quantity | 1 | |
| Minimum Input Voltage | 90VAC | |
| Maximum Input Voltage | 305VAC | |
| Delivery Output Volts | 6 ~ 12V | |
| Peak Output Current | 8A | |
| Wattage Power Level | 100 W | |
| Isolation Barrier Voltage | 3.85 kV | |
| Brightness Control | Analog, PWM | |
| Key Product Highlights | OCP, OTP, OVP, SCP | |
| Performance Rating Specs | IP67 | |
| Ambient Temp Range | -40°C ~ 70°C | |
| Performance Efficiency Rating | 92% | |
| Lead Termination Type | Wire Leads | |
| Package Size Specs | 7.72" L x 2.68" W x 1.53" H (196.0mm x 68.0mm x 38.8mm) | |
| Certification Body | UL | |
| Compliance Standard ID | 8750; 50581; 60950-1 |
Description
Complies with the criteria of entities acknowledged as UL. Supplies peak output current defined as 8A. Includes options for brightness adjustment classified as Analog, PWM. Offers an efficiency rating calculated at 92%. Equipped with features categorized as OCP, OTP, OVP, SCP. The input voltage established at 90VAC for reliable performance. Overall outputs 1 for device connections. Temperature range -40°C ~ 70°C for environmental conditions impacting thermal efficiency. Voltage 6 ~ 12V for optimal output electric potential. Type of housing Bulk for safeguarding or transporting components. Power measured in watts 100 W for optimal operation. Product status Obsolete concerning availability and lifecycle. Criteria IP67 for electrical, mechanical, or environmental performance. Classification series for the product or component LNE-100W. Details on package size 7.72" L x 2.68" W x 1.53" H (196.0mm x 68.0mm x 38.8mm) for electrical or mechanical components. Measurement dimensions 7.72" L x 2.68" W x 1.53" H (196.0mm x 68.0mm x 38.8mm) for component specifications. Standard compliance code 8750; 50581; 60950-1 for regulations. Type of termination Wire Leads for connector or device. Layout design AC DC Converter for electrical systems or configurations. Type classification Constant Current, Voltage for specifications. Maximum input voltage 305VAC for safeguarding. Minimum input voltage 90VAC for operation. Isolation voltage 3.85 kV for electrical safety. The output voltage 6 ~ 12V for electrical systems.
