Description

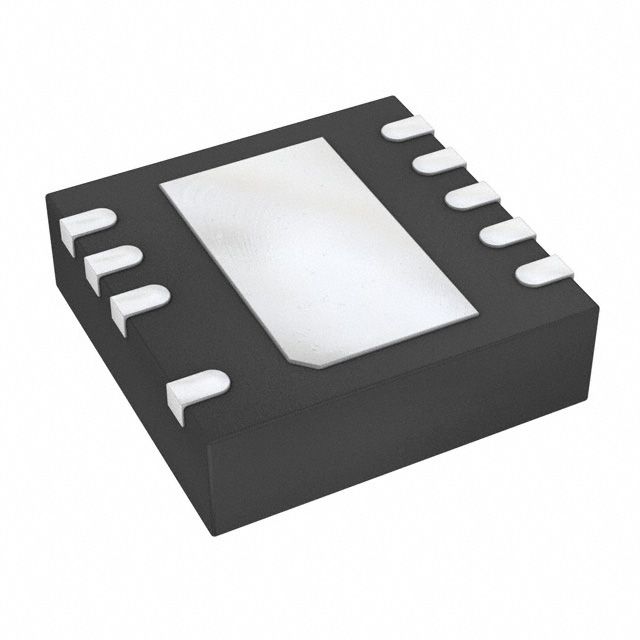

Organized by channel type referred to as Independent. Facilitates a maximum output current level set as 0.8V, 2.5V. Facilitates peak sourcing and sinking currents of 3A, 3A. Implements the driven arrangement described as Half-Bridge. Features MOSFET (N-Channel) gate type suitable for efficient transistor control. Supports a maximum high-side voltage of 120 V in bootstrap applications. Configured with Non-Inverting input type for diverse applications. The voltage levels VIL/VIH 0.8V, 2.5V required to meet digital input/output standards. Mounting configuration Surface Mount for structural stability. Total drivers 2 responsible for managing circuits or systems. Temperature range -40°C ~ 140°C (TJ) for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 10-VFDFN Exposed Pad, 9 Leads that offers mechanical and thermal protection. Type of package 9-VSON (3x3) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Typical rise and fall duration 8ns, 7ns for signal transitions. Supplier package type 9-VSON (3x3) for component selection. Voltage requirement 8V ~ 17V for electrical specifications. Voltage supply 8V ~ 17V for device operation.
