Description

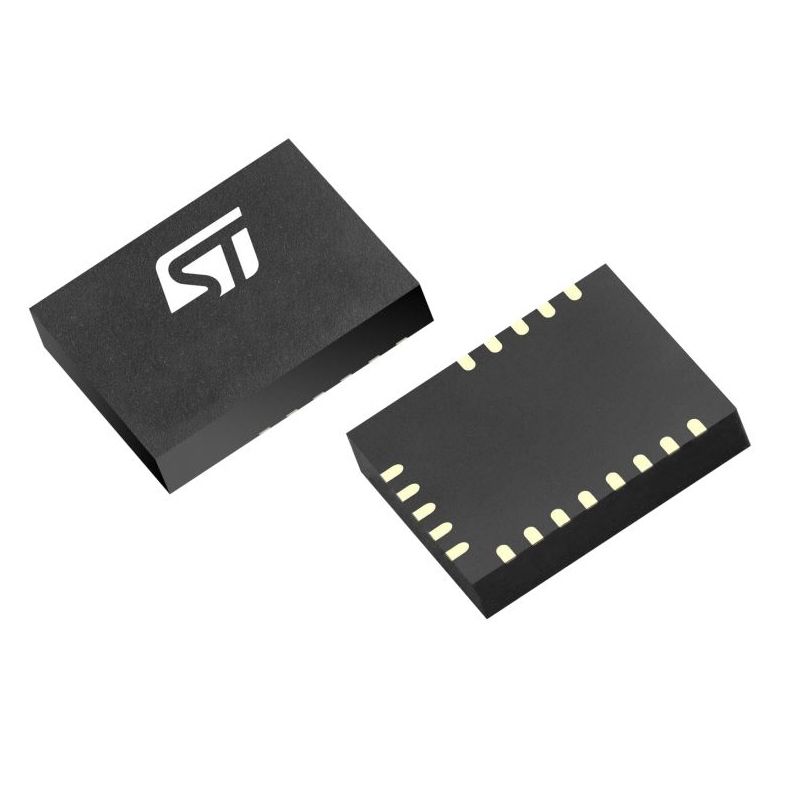

Organized by channel type referred to as Independent. Facilitates a maximum output current level set as 1.45V, 2V. Facilitates peak sourcing and sinking currents of 1A, 2.4A. Implements the driven arrangement described as Half-Bridge. Features MOSFET (N-Channel) gate type suitable for efficient transistor control. Supports a maximum high-side voltage of 220 V in bootstrap applications. Configured with Non-Inverting input type for diverse applications. The voltage levels VIL/VIH 1.45V, 2V required to meet digital input/output standards. Mounting configuration Surface Mount, Wettable Flank for structural stability. Total drivers 2 responsible for managing circuits or systems. Temperature range -40°C ~ 125°C (TJ) for environmental conditions impacting thermal efficiency. Type of housing Tray for safeguarding or transporting components. Style of the enclosure/case 18-TFQFN that offers mechanical and thermal protection. Type of package 18-QFN (4x5) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Typical rise and fall duration 22ns, 11ns for signal transitions. Classification series for the product or component ECOPACK®. Supplier package type 18-QFN (4x5) for component selection. Voltage requirement 9.2V ~ 18V for electrical specifications. Voltage supply 9.2V ~ 18V for device operation.
