Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 2500 | ₹ 22.97000 | ₹ 57,425.00 |
| 1000 | ₹ 24.02000 | ₹ 24,020.00 |
| 500 | ₹ 25.00000 | ₹ 12,500.00 |
| 250 | ₹ 26.21000 | ₹ 6,552.50 |
| 100 | ₹ 28.20000 | ₹ 2,820.00 |
| 25 | ₹ 32.36000 | ₹ 809.00 |
| 10 | ₹ 36.12000 | ₹ 361.20 |
| 1 | ₹ 51.73000 | ₹ 51.73 |
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 50.73000 | ₹ 50.73 |
| 10 | ₹ 35.42000 | ₹ 354.20 |
| 25 | ₹ 31.68000 | ₹ 792.00 |
| 100 | ₹ 27.59000 | ₹ 2,759.00 |
| 250 | ₹ 24.48000 | ₹ 6,120.00 |
| 1000 | ₹ 24.03000 | ₹ 24,030.00 |
| 2500 | ₹ 22.87000 | ₹ 57,175.00 |
| 10000 | ₹ 22.25000 | ₹ 2,22,500.00 |
| 20000 | ₹ 22.16000 | ₹ 4,43,200.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Load Drive Setup | High-Side or Low-Side | |
| Signal Path Design | Synchronous | |
| Output Driver Count | 2 | |
| Logic Gate Category | MOSFET (N-Channel) | |
| Power Supply Voltage | 4.5V ~ 13.2V | |
| Logic Low/High Voltage | - | |
| Peak Source/Sink Output | - | |
| Entry Signal Category | Non-Inverting | |
| Max Bootstrap High Voltage | 46 V | |
| Typical Edge Transition Time | 25ns, 12ns | |
| Ambient Temp Range | -40°C ~ 85°C (TA) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

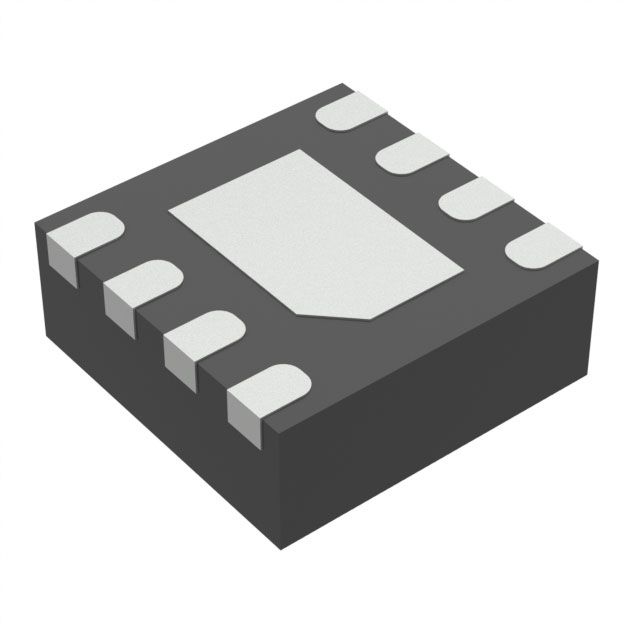

| Component Housing Style | 8-WFDFN Exposed Pad | |
| Vendor Package Type | 8-WDFN-SL (2x2) |
Description
Organized by channel type referred to as Synchronous. Implements the driven arrangement described as High-Side or Low-Side. Features MOSFET (N-Channel) gate type suitable for efficient transistor control. Supports a maximum high-side voltage of 46 V in bootstrap applications. Configured with Non-Inverting input type for diverse applications. Mounting configuration Surface Mount for structural stability. Total drivers 2 responsible for managing circuits or systems. Temperature range -40°C ~ 85°C (TA) for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 8-WFDFN Exposed Pad that offers mechanical and thermal protection. Type of package 8-WDFN-SL (2x2) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Typical rise and fall duration 25ns, 12ns for signal transitions. Supplier package type 8-WDFN-SL (2x2) for component selection. Voltage requirement 4.5V ~ 13.2V for electrical specifications. Voltage supply 4.5V ~ 13.2V for device operation.
