Stock:
Distributor: 116
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 48000 | ₹ 37.68000 | ₹ 18,08,640.00 |
| 36000 | ₹ 38.13000 | ₹ 13,72,680.00 |
| 24000 | ₹ 38.77000 | ₹ 9,30,480.00 |
| 12000 | ₹ 39.41000 | ₹ 4,72,920.00 |
| 6000 | ₹ 40.05000 | ₹ 2,40,300.00 |
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 6000 | ₹ 42.01000 | ₹ 2,52,060.00 |
Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 18000 | ₹ 42.72000 | ₹ 7,68,960.00 |
| 12000 | ₹ 43.15000 | ₹ 5,17,800.00 |
| 6000 | ₹ 44.01000 | ₹ 2,64,060.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Active | |
| Load Drive Setup | Half-Bridge | |
| Signal Path Design | Synchronous | |
| Output Driver Count | 2 | |
| Logic Gate Category | MOSFET (N-Channel) | |
| Power Supply Voltage | 6V ~ 13.2V | |
| Logic Low/High Voltage | - | |
| Peak Source/Sink Output | - | |
| Entry Signal Category | Non-Inverting | |
| Max Bootstrap High Voltage | 36 V | |
| Typical Edge Transition Time | 31ns, 18ns | |
| Ambient Temp Range | -40°C ~ 85°C (TA) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

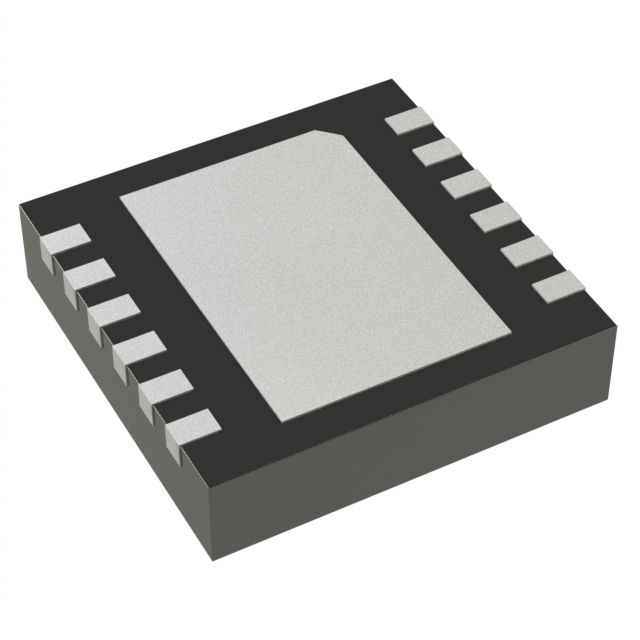

| Component Housing Style | 12-WFDFN Exposed Pad | |
| Vendor Package Type | 12-TDFN (3x3) |
Description
Organized by channel type referred to as Synchronous. Implements the driven arrangement described as Half-Bridge. Features MOSFET (N-Channel) gate type suitable for efficient transistor control. Supports a maximum high-side voltage of 36 V in bootstrap applications. Configured with Non-Inverting input type for diverse applications. Mounting configuration Surface Mount for structural stability. Total drivers 2 responsible for managing circuits or systems. Temperature range -40°C ~ 85°C (TA) for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 12-WFDFN Exposed Pad that offers mechanical and thermal protection. Type of package 12-TDFN (3x3) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Typical rise and fall duration 31ns, 18ns for signal transitions. Supplier package type 12-TDFN (3x3) for component selection. Voltage requirement 6V ~ 13.2V for electrical specifications. Voltage supply 6V ~ 13.2V for device operation.
