Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Obsolete | |
| Load Drive Setup | Half-Bridge | |
| Signal Path Design | Independent | |
| Output Driver Count | 2 | |
| Logic Gate Category | MOSFET (N-Channel) | |
| Power Supply Voltage | 9V ~ 15V | |
| Logic Low/High Voltage | 0.8V, 2.2V | |
| Peak Source/Sink Output | 1.4A, 1.3A | |
| Entry Signal Category | Non-Inverting | |
| Max Bootstrap High Voltage | 80 V | |
| Typical Edge Transition Time | 5ns, 5ns | |
| Ambient Temp Range | -40°C ~ 125°C (TJ) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

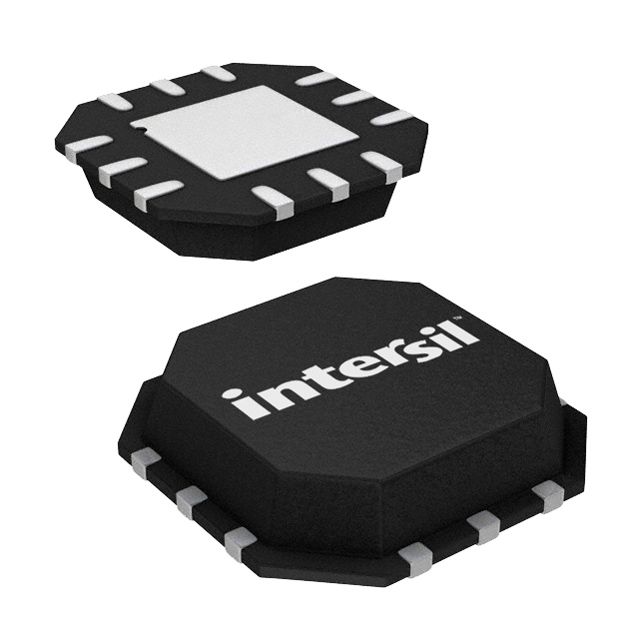

| Component Housing Style | 12-VQFN Exposed Pad | |
| Vendor Package Type | 12-QFN (4x4) |
Description
Organized by channel type referred to as Independent. Facilitates a maximum output current level set as 0.8V, 2.2V. Facilitates peak sourcing and sinking currents of 1.4A, 1.3A. Implements the driven arrangement described as Half-Bridge. Features MOSFET (N-Channel) gate type suitable for efficient transistor control. Supports a maximum high-side voltage of 80 V in bootstrap applications. Configured with Non-Inverting input type for diverse applications. The voltage levels VIL/VIH 0.8V, 2.2V required to meet digital input/output standards. Mounting configuration Surface Mount for structural stability. Total drivers 2 responsible for managing circuits or systems. Temperature range -40°C ~ 125°C (TJ) for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 12-VQFN Exposed Pad that offers mechanical and thermal protection. Type of package 12-QFN (4x4) that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Typical rise and fall duration 5ns, 5ns for signal transitions. Supplier package type 12-QFN (4x4) for component selection. Voltage requirement 9V ~ 15V for electrical specifications. Voltage supply 9V ~ 15V for device operation.
