Description

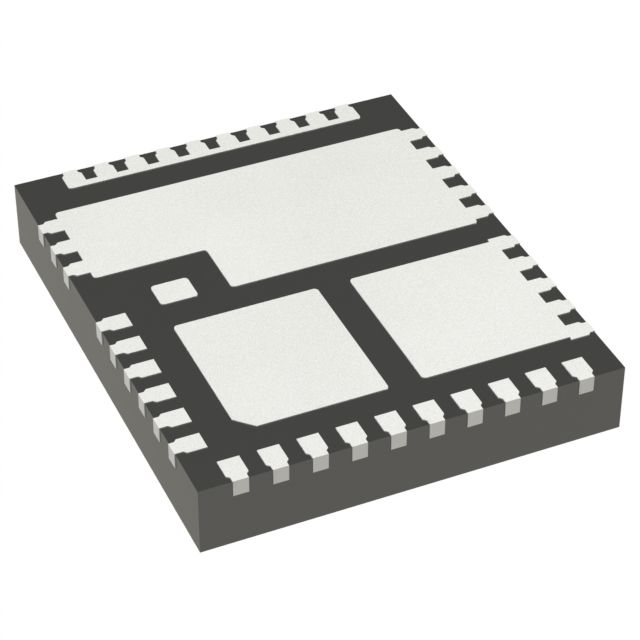

Organized by channel type referred to as Single. Facilitates a maximum output current level set as 0.65V, 2.7V. Facilitates peak sourcing and sinking currents of 100mA, 100mA. Implements the driven arrangement described as Half-Bridge, Low-Side. Features MOSFET (N-Channel) gate type suitable for efficient transistor control. Supports a maximum high-side voltage of 30 V in bootstrap applications. Configured with Non-Inverting input type for diverse applications. The voltage levels VIL/VIH 0.65V, 2.7V required to meet digital input/output standards. Mounting configuration Surface Mount for structural stability. Total drivers 2 responsible for managing circuits or systems. Temperature range -40°C ~ 125°C (TJ) for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 39-PowerVFQFN that offers mechanical and thermal protection. Type of package 39-PQFN (5x6) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Typical rise and fall duration 17ns, 26ns for signal transitions. Supplier package type 39-PQFN (5x6) for component selection. Voltage requirement 4.5V ~ 5.5V for electrical specifications. Voltage supply 4.5V ~ 5.5V for device operation.
