Stock:
Distributor: 140
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 5000 | ₹ 65.86000 | ₹ 3,29,300.00 |
| 1000 | ₹ 68.53000 | ₹ 68,530.00 |
| 100 | ₹ 74.76000 | ₹ 7,476.00 |
| 25 | ₹ 81.88000 | ₹ 2,047.00 |
| 1 | ₹ 90.78000 | ₹ 90.78 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Active | |
| Load Drive Setup | Half-Bridge | |
| Signal Path Design | Independent | |
| Output Driver Count | 2 | |
| Logic Gate Category | MOSFET (N-Channel) | |
| Power Supply Voltage | 5.25V ~ 16V | |
| Logic Low/High Voltage | 0.8V, 2.2 V | |
| Peak Source/Sink Output | 1A, 1A | |
| Entry Signal Category | Non-Inverting | |
| Max Bootstrap High Voltage | - | |
| Typical Edge Transition Time | 20ns, 20ns | |
| Ambient Temp Range | -40°C ~ 125°C (TJ) | |
| Quality Grade Level | Automotive | |
| Certification Qualification | AEC-Q100 | |
| Attachment Mounting Style | Surface Mount | |

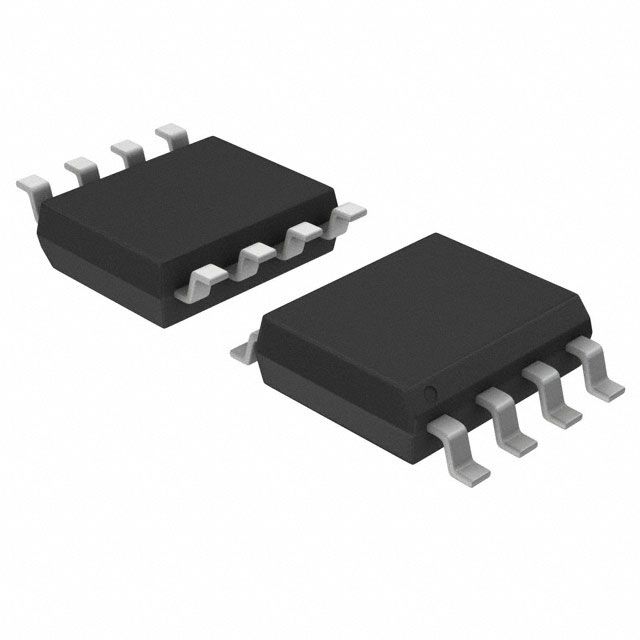

| Component Housing Style | 8-SOIC (0.154", 3.90mm Width) | |
| Vendor Package Type | 8-SOIC |
Description
Organized by channel type referred to as Independent. Facilitates a maximum output current level set as 0.8V, 2.2 V. Facilitates peak sourcing and sinking currents of 1A, 1A. Implements the driven arrangement described as Half-Bridge. Features MOSFET (N-Channel) gate type suitable for efficient transistor control. Evaluated as Automotive grade for quality control. Configured with Non-Inverting input type for diverse applications. The voltage levels VIL/VIH 0.8V, 2.2 V required to meet digital input/output standards. Mounting configuration Surface Mount for structural stability. Total drivers 2 responsible for managing circuits or systems. Temperature range -40°C ~ 125°C (TJ) for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 8-SOIC (0.154", 3.90mm Width) that offers mechanical and thermal protection. Type of package 8-SOIC that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Certification AEC-Q100 for compliance with testing or regulatory standards. Typical rise and fall duration 20ns, 20ns for signal transitions. Supplier package type 8-SOIC for component selection. Voltage requirement 5.25V ~ 16V for electrical specifications. Voltage supply 5.25V ~ 16V for device operation.
