Description

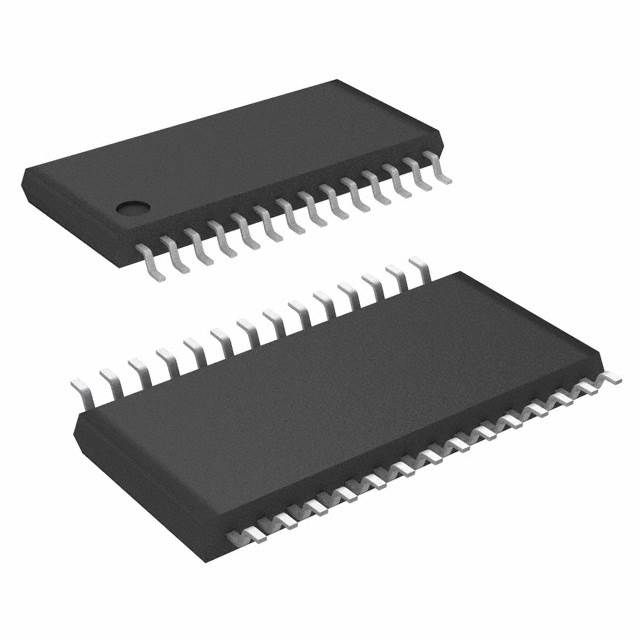

Organized by channel type referred to as 3-Phase. Facilitates a maximum output current level set as 1.1V, 1.7V. Implements the driven arrangement described as Half-Bridge. Features IGBT, MOSFET (N-Channel, P-Channel) gate type suitable for efficient transistor control. Supports a maximum high-side voltage of 620 V in bootstrap applications. Configured with Inverting input type for diverse applications. The voltage levels VIL/VIH 1.1V, 1.7V required to meet digital input/output standards. Mounting configuration Surface Mount for structural stability. Total drivers 6 responsible for managing circuits or systems. Temperature range -40°C ~ 125°C (TJ) for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 28-TSSOP (0.173", 4.40mm Width) that offers mechanical and thermal protection. Type of package PG-TSSOP-28 that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Typical rise and fall duration 60ns, 26ns for signal transitions. Classification series for the product or component EiceDRIVER™. Supplier package type PG-TSSOP-28 for component selection. Voltage requirement 13V ~ 17.5V for electrical specifications. Voltage supply 13V ~ 17.5V for device operation.
