Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Strip | |
| Availability Status | Obsolete | |
| Load Drive Setup | Half-Bridge | |
| Signal Path Design | Synchronous | |
| Output Driver Count | 2 | |
| Logic Gate Category | MOSFET (N-Channel) | |
| Power Supply Voltage | 4.5V ~ 5.5V | |
| Logic Low/High Voltage | 0.4V, 1.6V | |
| Peak Source/Sink Output | 1A, 5A | |
| Entry Signal Category | TTL | |
| Max Bootstrap High Voltage | 60 V | |
| Typical Edge Transition Time | 5ns, 1ns | |
| Ambient Temp Range | -40°C ~ 85°C | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

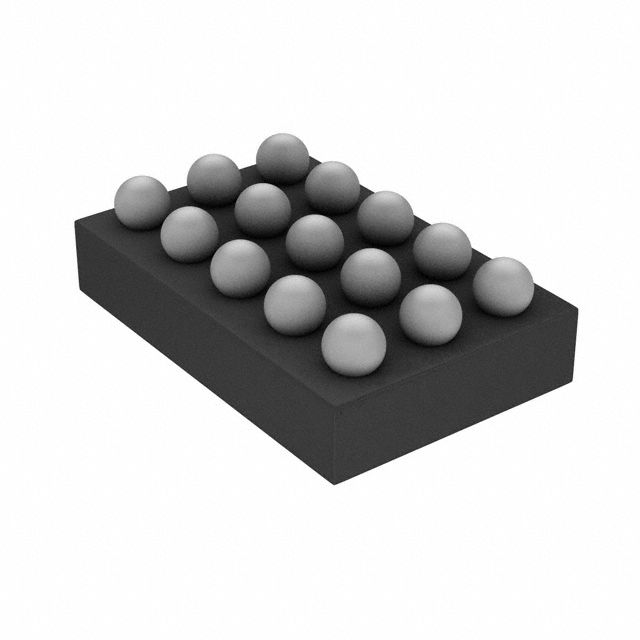

| Component Housing Style | 15-WFBGA, WLBGA | |
| Vendor Package Type | 15-WLP (1.22x2.05) |
Description
Organized by channel type referred to as Synchronous. Facilitates a maximum output current level set as 0.4V, 1.6V. Facilitates peak sourcing and sinking currents of 1A, 5A. Implements the driven arrangement described as Half-Bridge. Features MOSFET (N-Channel) gate type suitable for efficient transistor control. Supports a maximum high-side voltage of 60 V in bootstrap applications. Configured with TTL input type for diverse applications. The voltage levels VIL/VIH 0.4V, 1.6V required to meet digital input/output standards. Mounting configuration Surface Mount for structural stability. Total drivers 2 responsible for managing circuits or systems. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Strip for safeguarding or transporting components. Style of the enclosure/case 15-WFBGA, WLBGA that offers mechanical and thermal protection. Type of package 15-WLP (1.22x2.05) that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Typical rise and fall duration 5ns, 1ns for signal transitions. Supplier package type 15-WLP (1.22x2.05) for component selection. Voltage requirement 4.5V ~ 5.5V for electrical specifications. Voltage supply 4.5V ~ 5.5V for device operation.
