Stock:
Distributor: 121
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 100 | ₹ 176.92000 | ₹ 17,692.00 |
| 250 | ₹ 175.66000 | ₹ 43,915.00 |
| 500 | ₹ 175.02000 | ₹ 87,510.00 |
| 2500 | ₹ 174.38000 | ₹ 4,35,950.00 |
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 340.87000 | ₹ 340.87 |
| 10 | ₹ 257.21000 | ₹ 2,572.10 |
| 25 | ₹ 236.74000 | ₹ 5,918.50 |
| 100 | ₹ 213.60000 | ₹ 21,360.00 |
| 250 | ₹ 202.92000 | ₹ 50,730.00 |
| 500 | ₹ 195.80000 | ₹ 97,900.00 |
| 1000 | ₹ 191.35000 | ₹ 1,91,350.00 |
| 2500 | ₹ 178.89000 | ₹ 4,47,225.00 |
Stock:
Distributor: 141
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 340.87000 | ₹ 340.87 |
| 10 | ₹ 257.12000 | ₹ 2,571.20 |
| 25 | ₹ 236.21000 | ₹ 5,905.25 |
| 100 | ₹ 213.25000 | ₹ 21,325.00 |
| 250 | ₹ 202.31000 | ₹ 50,577.50 |
| 500 | ₹ 195.71000 | ₹ 97,855.00 |
| 1000 | ₹ 190.28000 | ₹ 1,90,280.00 |
| 2500 | ₹ 184.54000 | ₹ 4,61,350.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Load Drive Setup | Half-Bridge | |
| Signal Path Design | Synchronous | |
| Output Driver Count | 2 | |
| Logic Gate Category | MOSFET (N-Channel) | |
| Power Supply Voltage | 4.2V ~ 5.5V | |
| Logic Low/High Voltage | - | |
| Peak Source/Sink Output | 2A, 2.7A | |
| Entry Signal Category | Non-Inverting | |
| Max Bootstrap High Voltage | 24 V | |
| Typical Edge Transition Time | 10ns, 8ns | |
| Ambient Temp Range | -40°C ~ 150°C (TJ) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

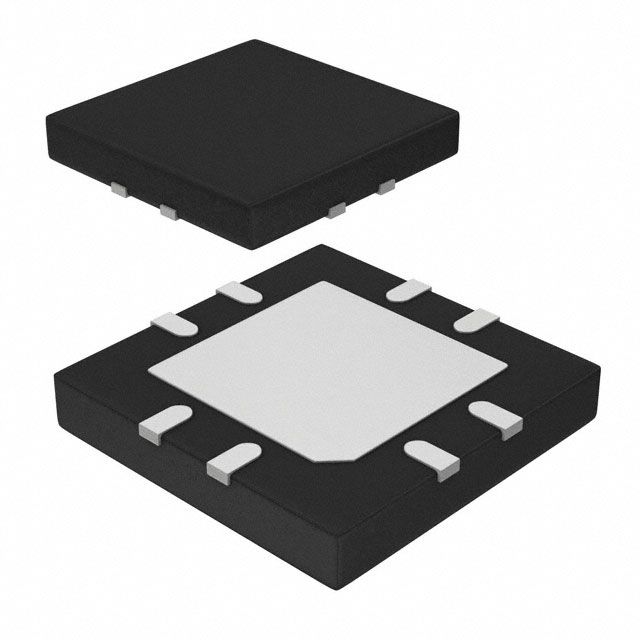

| Component Housing Style | 8-WQFN Exposed Pad | |
| Vendor Package Type | 8-TQFN (3x3) |
Description
Organized by channel type referred to as Synchronous. Facilitates peak sourcing and sinking currents of 2A, 2.7A. Implements the driven arrangement described as Half-Bridge. Features MOSFET (N-Channel) gate type suitable for efficient transistor control. Supports a maximum high-side voltage of 24 V in bootstrap applications. Configured with Non-Inverting input type for diverse applications. Mounting configuration Surface Mount for structural stability. Total drivers 2 responsible for managing circuits or systems. Temperature range -40°C ~ 150°C (TJ) for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 8-WQFN Exposed Pad that offers mechanical and thermal protection. Type of package 8-TQFN (3x3) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Typical rise and fall duration 10ns, 8ns for signal transitions. Supplier package type 8-TQFN (3x3) for component selection. Voltage requirement 4.2V ~ 5.5V for electrical specifications. Voltage supply 4.2V ~ 5.5V for device operation.
