Stock:
Distributor: 11
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 25 | ₹ 182.29000 | ₹ 4,557.25 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | 54HC | |
| IC Encapsulation Type | Tube | |
| Availability Status | Active | |
| Primary Function Mode | Set(Preset) and Reset | |
| Device Type Classification | D-Type | |
| Exit Signal Category | Complementary | |
| Component Element Total | 2 | |
| Bits per Data Element | 1 | |
| Timing Pulse Rate | 35 MHz | |
| Worst-Case Signal Delay | 34ns @ 6V, 50pF | |
| Activation Trigger Method | Positive Edge | |
| High/Low Logic Current | 5.2mA, 5.2mA | |
| Power Supply Voltage | 2V ~ 6V | |
| Standby Current Draw | 4 µA | |
| Gate Input Capacitance | 10 pF | |
| Ambient Temp Range | -55°C ~ 125°C (TA) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Through Hole | |

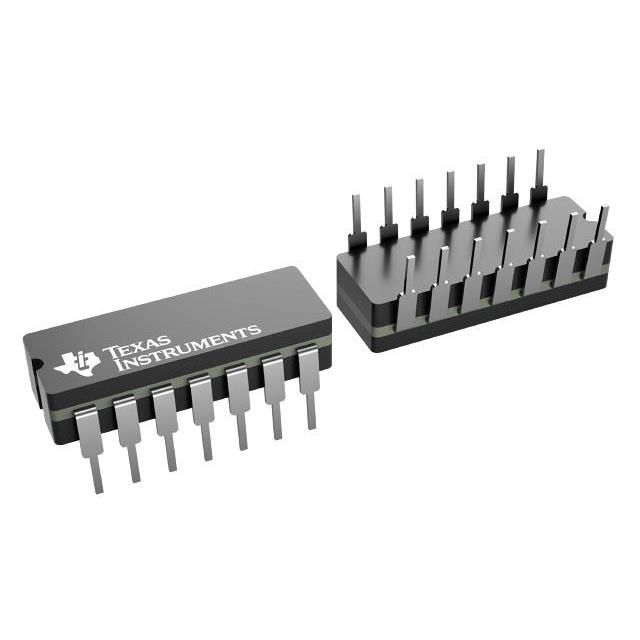

| Vendor Package Type | 14-CDIP | |
| Component Housing Style | 14-CDIP (0.300", 7.62mm) |
Description
Operates at a clock frequency of 35 MHz. Facilitates a maximum output current level set as 5.2mA, 5.2mA. Offers information on high and low output current settings at 5.2mA, 5.2mA. Accommodates quiescent current Iq rated at 4 µA. Engineered with Set(Preset) and Reset features for versatile component usage. The input capacitance rated at 10 pF provides dependable signal handling. Maximum signal delay 34ns @ 6V, 50pF at voltage and max CL for precise digital circuits. Mounting configuration Through Hole for structural stability. Bits per data item 1 for memory or ADC precision. Total elements 2 present in circuits or arrays. Temperature range -55°C ~ 125°C (TA) for environmental conditions impacting thermal efficiency. Type Complementary for ensuring compatibility with output systems. Type of housing Tube for safeguarding or transporting components. Style of the enclosure/case 14-CDIP (0.300", 7.62mm) that offers mechanical and thermal protection. Type of package 14-CDIP that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Classification series for the product or component 54HC. Supplier package type 14-CDIP for component selection. Voltage requirement 2V ~ 6V for electrical specifications. Approach for starting Positive Edge to enable device operations. Type classification D-Type for specifications. Voltage supply 2V ~ 6V for device operation.
