Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tray | |
| Availability Status | Obsolete | |
| Data Bit Width | 10 | |
| Digital-to-Analog Converter Count | 2 | |
| Stabilization Time us | 20ns (Typ) | |
| Exit Signal Category | Current - Unbuffered | |
| Balanced Output Signal | Yes | |
| Data Link Protocol | JESD204A | |
| Voltage Reference Source | External, Internal | |
| Analog Section Voltage | 1.7V ~ 1.9V, 3.13V ~ 3.47V | |
| Digital Core Voltage | 1.7V ~ 1.9V | |
| Integral Differential Nonlinearity | - | |
| System Design Structure | Oversampling Interpolating DAC | |
| Ambient Temp Range | -40°C ~ 85°C | |

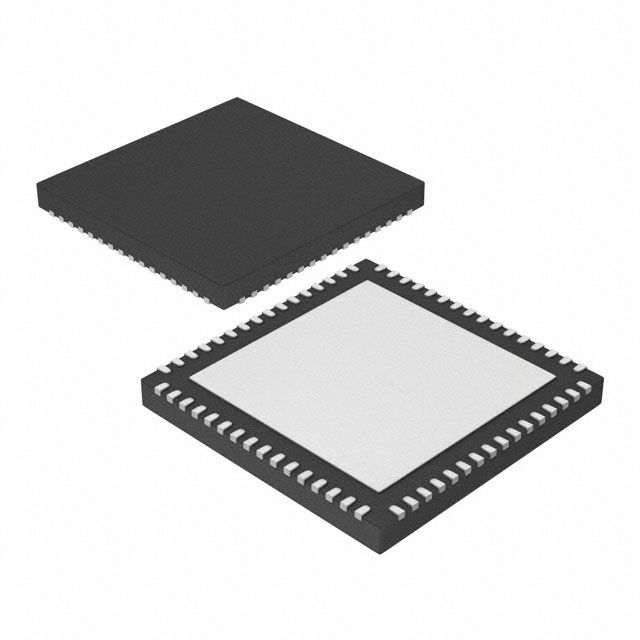

| Component Housing Style | 64-VFQFN Exposed Pad | |
| Vendor Package Type | 64-HVQFN (9x9) | |
| Attachment Mounting Style | Surface Mount | |
| Quality Grade Level | - | |
| Certification Qualification | - |
Description
Utilizes a Oversampling Interpolating DAC architecture to improve effectiveness. Operates through a data interface specified at JESD204A. Features a differential output recorded at Yes. Mounting configuration Surface Mount for structural stability. Overall bits 10 ensuring digital precision. The total number of converters is 2 for power or signal transformation. Total D/A converters 2 utilized for transforming digital signals into analog format. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type Current - Unbuffered for ensuring compatibility with output systems. Type of housing Tray for safeguarding or transporting components. Style of the enclosure/case 64-VFQFN Exposed Pad that offers mechanical and thermal protection. Type of package 64-HVQFN (9x9) that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Kind of reference External, Internal utilized for component identification. Duration needed for signal stabilization 20ns (Typ). Supplier package type 64-HVQFN (9x9) for component selection. Voltage supply 1.7V ~ 1.9V, 3.13V ~ 3.47V for the analog section of circuits. Voltage supplied to digital components 1.7V ~ 1.9V.
