Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tube | |
| Availability Status | Obsolete | |
| Data Bit Width | 11 | |
| Digital-to-Analog Converter Count | 1 | |
| Stabilization Time us | 2.2ns (Typ) | |
| Exit Signal Category | Current - Unbuffered | |
| Balanced Output Signal | Yes | |
| Data Link Protocol | LVDS - Parallel, SPI | |
| Voltage Reference Source | External, Internal | |
| Analog Section Voltage | 1.8V ~ 1.92V, 3.135V ~ 3.465V | |
| Digital Core Voltage | 1.8V ~ 1.92V, 3.135V ~ 3.465V | |
| Integral Differential Nonlinearity | ±0.2, ±0.1 | |
| System Design Structure | Current Steering | |
| Ambient Temp Range | 0°C ~ 70°C | |

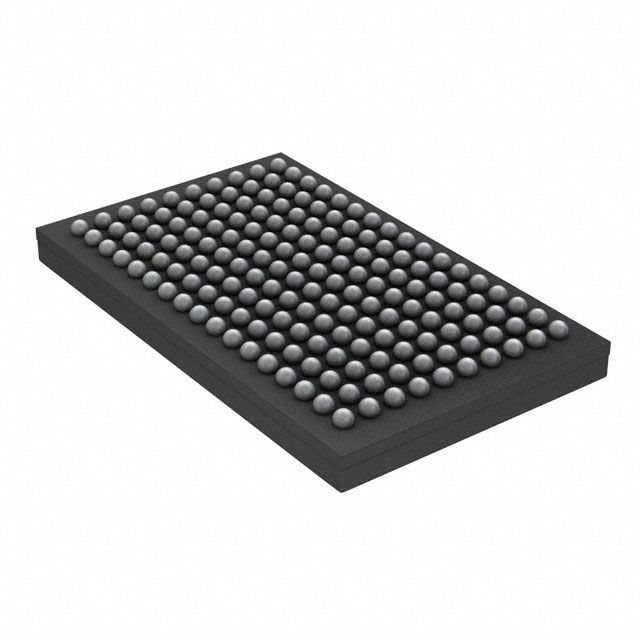

| Component Housing Style | 170-LFBGA | |
| Vendor Package Type | 170-BGA (15x9) | |
| Attachment Mounting Style | Surface Mount | |
| Quality Grade Level | - | |
| Certification Qualification | - |
Description
Utilizes a Current Steering architecture to improve effectiveness. Operates through a data interface specified at LVDS - Parallel, SPI. Features a differential output recorded at Yes. Maintains ±0.2, ±0.1 INL/DNL in LSB for precise ADC functionality. Mounting configuration Surface Mount for structural stability. Overall bits 11 ensuring digital precision. The total number of converters is 1 for power or signal transformation. Total D/A converters 1 utilized for transforming digital signals into analog format. Temperature range 0°C ~ 70°C for environmental conditions impacting thermal efficiency. Type Current - Unbuffered for ensuring compatibility with output systems. Type of housing Tube for safeguarding or transporting components. Style of the enclosure/case 170-LFBGA that offers mechanical and thermal protection. Type of package 170-BGA (15x9) that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Kind of reference External, Internal utilized for component identification. Duration needed for signal stabilization 2.2ns (Typ). Supplier package type 170-BGA (15x9) for component selection. Voltage supply 1.8V ~ 1.92V, 3.135V ~ 3.465V for the analog section of circuits. Voltage supplied to digital components 1.8V ~ 1.92V, 3.135V ~ 3.465V.
