Attribute
Description
Manufacturer Part Number
TSX393IQ2T
Manufacturer
Description
IC COMPARATOR 2 CMOS 8DFN
Manufacturer Lead Time
55 weeks
Note : GST will not be applied to orders shipping outside of India

Stock:

Distributor: 142

Quantity Unit Price Ext. Price
1 ₹ 93.45000 ₹ 93.45
10 ₹ 67.64000 ₹ 676.40
25 ₹ 61.41000 ₹ 1,535.25
100 ₹ 54.29000 ₹ 5,429.00
250 ₹ 50.73000 ₹ 12,682.50
500 ₹ 48.06000 ₹ 24,030.00

Product Attributes

Type Description
Category
Import Duty Classification Tariff may apply if shipping to the United States
Product Series Line -
IC Encapsulation Type Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
Availability Status Active
Device Type Classification CMOS
Component Element Total 2
Exit Signal Category Open-Drain
Single or Dual Supply Option 2.7V ~ 16V, ±1.35V ~ 8V
Max Input Offset Volts 5mV
Peak Bias Input Current 10pA
Typical Output Amperage -
Maximum Idle Current 8µA
Typical Rejection Ratios 85dB CMRR
Worst-Case Delay Time 2.5µs
Switching Threshold Gap -
Ambient Temp Range -40°C ~ 125°C
Quality Grade Level -
Certification Qualification -

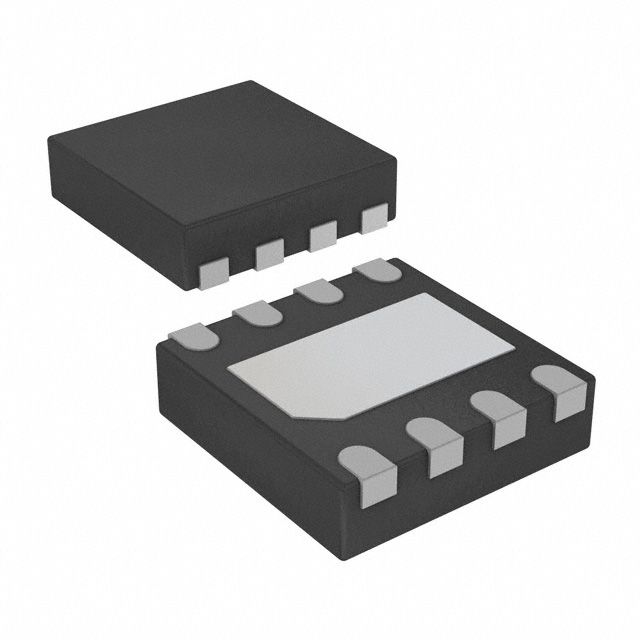

Component Housing Style 8-UFDFN Exposed Pad
Attachment Mounting Style Surface Mount
Vendor Package Type 8-DFN (2x2)

Description

Features standard CMRR and PSRR metrics of 85dB CMRR to reduce interference. Assesses resistance at forward current Tariff may apply if shipping to the United States for LED or diode testing. Displays the maximum input bias current of 10pA. Provides maximum quiescent current of 8µA. Mounting configuration Surface Mount for structural stability. Total elements 2 present in circuits or arrays. Temperature range -40°C ~ 125°C for environmental conditions impacting thermal efficiency. Type Open-Drain for ensuring compatibility with output systems. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 8-UFDFN Exposed Pad that offers mechanical and thermal protection. Type of package 8-DFN (2x2) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Maximum signal latency 2.5µs for critical timing. Supplier package type 8-DFN (2x2) for component selection. The classification for import duties Tariff may apply if shipping to the United States related to import and export transactions. Type classification CMOS for specifications. Maximum Vce(on) at Vge Tariff may apply if shipping to the United States for transistor specifications. Maximum input offset voltage 5mV for precise circuits. Option to select between single or dual voltage supply ± 2.7V ~ 16V, ±1.35V ~ 8V for different devices.
