Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tray | |
| Availability Status | Obsolete | |
| Device Type Classification | with Latch | |
| Component Element Total | 2 | |
| Exit Signal Category | Complementary, Differential, ECL, Open-Emitter | |
| Single or Dual Supply Option | ±4.75V ~ 5.25V | |
| Max Input Offset Volts | 5mV @ -5.2V, 5V | |
| Peak Bias Input Current | 42µA @ -5.2V,5V | |
| Typical Output Amperage | 30mA | |
| Maximum Idle Current | 18mA, 85mA | |
| Typical Rejection Ratios | 69dB CMRR | |
| Worst-Case Delay Time | 0.29ns | |
| Switching Threshold Gap | ±1mV | |
| Ambient Temp Range | -40°C ~ 85°C | |
| Quality Grade Level | - | |
| Certification Qualification | - | |

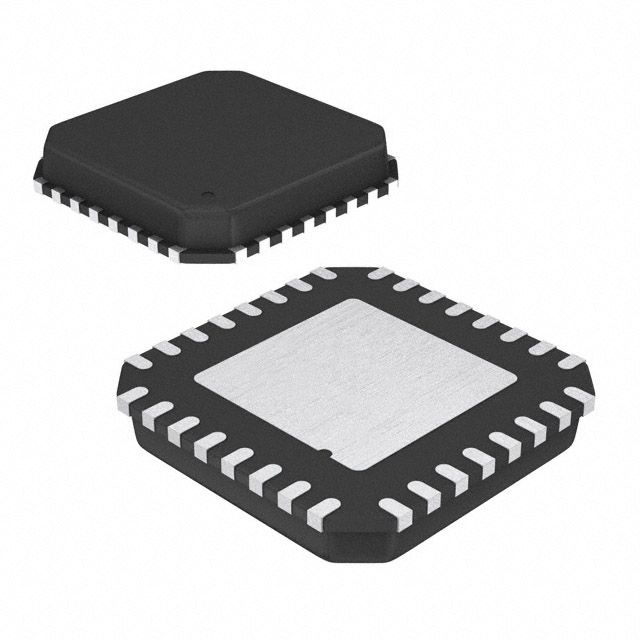

| Component Housing Style | 32-VFQFN Exposed Pad, CSP | |
| Attachment Mounting Style | Surface Mount | |
| Vendor Package Type | 32-LFCSP (5x5) |
Description
Features standard CMRR and PSRR metrics of 69dB CMRR to reduce interference. Displays the maximum input bias current of 42µA @ -5.2V,5V. Records typical output current at 30mA. Provides maximum quiescent current of 18mA, 85mA. Provides ±1mV hysteresis to reduce signal fluctuations. Mounting configuration Surface Mount for structural stability. Total elements 2 present in circuits or arrays. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type Complementary, Differential, ECL, Open-Emitter for ensuring compatibility with output systems. Type of housing Tray for safeguarding or transporting components. Style of the enclosure/case 32-VFQFN Exposed Pad, CSP that offers mechanical and thermal protection. Type of package 32-LFCSP (5x5) that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Maximum signal latency 0.29ns for critical timing. Supplier package type 32-LFCSP (5x5) for component selection. Type classification with Latch for specifications. Maximum input offset voltage 5mV @ -5.2V, 5V for precise circuits. Option to select between single or dual voltage supply ± ±4.75V ~ 5.25V for different devices.
