Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 100 | ₹ 3,823.05000 | ₹ 3,82,305.00 |
| 25 | ₹ 4,073.93000 | ₹ 1,01,848.25 |
| 10 | ₹ 4,302.27000 | ₹ 43,022.70 |
| 1 | ₹ 5,216.20000 | ₹ 5,216.20 |
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 5,085.46000 | ₹ 5,085.46 |
| 10 | ₹ 4,254.20000 | ₹ 42,542.00 |
| 25 | ₹ 4,066.41000 | ₹ 1,01,660.25 |
| 100 | ₹ 3,800.30000 | ₹ 3,80,030.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Data Bit Width | 18 | |
| Conversion Samples per Second | 2M | |
| Signal Input Quantity | 8, 16 | |
| Entry Signal Category | Differential, Single Ended | |
| Data Link Protocol | Serial, SPI | |
| Setup Arrangement | MUX-PGA-ADC | |
| Sample Hold to ADC Ratio | 0:8 | |
| Analog-to-Digital Converter Count | 8 | |
| System Design Structure | SAR | |
| Voltage Reference Source | External, Internal | |
| Analog Section Voltage | 1.75V ~ 1.85V, 4.75V ~ 5.25V | |
| Digital Core Voltage | 1.15V ~ 1.85V | |
| Key Product Highlights | Over-Voltage Protection, PGA | |
| Ambient Temp Range | -40°C ~ 125°C | |

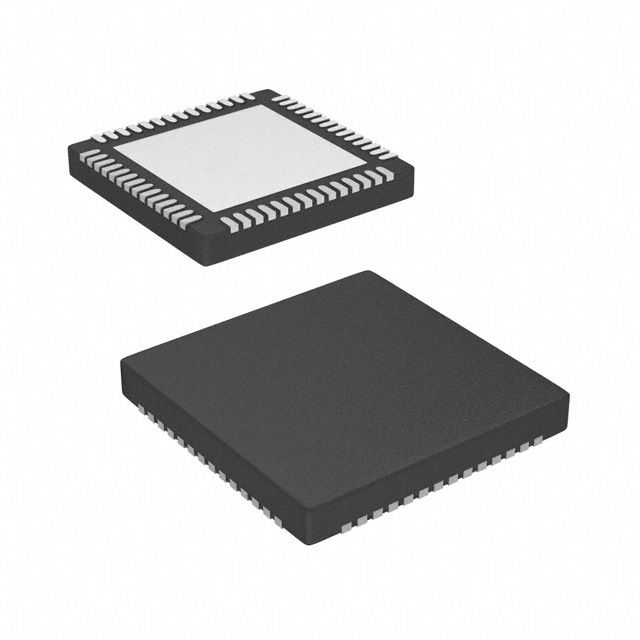

| Component Housing Style | 56-VFQFN Exposed Pad | |
| Vendor Package Type | 56-VQFN (7x7) | |
| Attachment Mounting Style | Surface Mount | |
| Quality Grade Level | - | |
| Certification Qualification | - |
Description
Utilizes a SAR architecture to improve effectiveness. Configured in a manner identified as MUX-PGA-ADC. Operates through a data interface specified at Serial, SPI. Equipped with features categorized as Over-Voltage Protection, PGA. Configured with Differential, Single Ended input type for diverse applications. Mounting configuration Surface Mount for structural stability. Number of A/D converters 8 for transforming analog signals into digital. Overall bits 18 ensuring digital precision. The total number of converters is 8 for power or signal transformation. Overall inputs 8, 16 for sensors or equipment. Temperature range -40°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Style of the enclosure/case 56-VFQFN Exposed Pad that offers mechanical and thermal protection. Type of package 56-VQFN (7x7) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Sample/hold to ADC ratio 0:8 for precise circuits. Kind of reference External, Internal utilized for component identification. Signal capture rate of 2M. Supplier package type 56-VQFN (7x7) for component selection. Voltage supply 1.75V ~ 1.85V, 4.75V ~ 5.25V for the analog section of circuits. Voltage supplied to digital components 1.15V ~ 1.85V.
