Stock:
Distributor: 122
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 5 | ₹ 3,45,238.12000 | ₹ 17,26,190.60 |
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 4,28,907.91000 | ₹ 4,28,907.91 |
Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 4,43,429.73000 | ₹ 4,43,429.73 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Strip | |
| Availability Status | Active | |
| Data Bit Width | 14 | |
| Conversion Samples per Second | 20M | |
| Signal Input Quantity | 1 | |
| Entry Signal Category | Differential | |
| Data Link Protocol | Parallel | |
| Setup Arrangement | MUX-S/H-ADC | |
| Sample Hold to ADC Ratio | 1:1 | |
| Analog-to-Digital Converter Count | 1 | |
| System Design Structure | Pipelined | |
| Voltage Reference Source | External, Internal | |
| Analog Section Voltage | 2.3V ~ 2.7V | |
| Digital Core Voltage | 4.75V ~ 5.25V | |
| Key Product Highlights | Internal Oscillator | |
| Ambient Temp Range | -55°C ~ 125°C | |

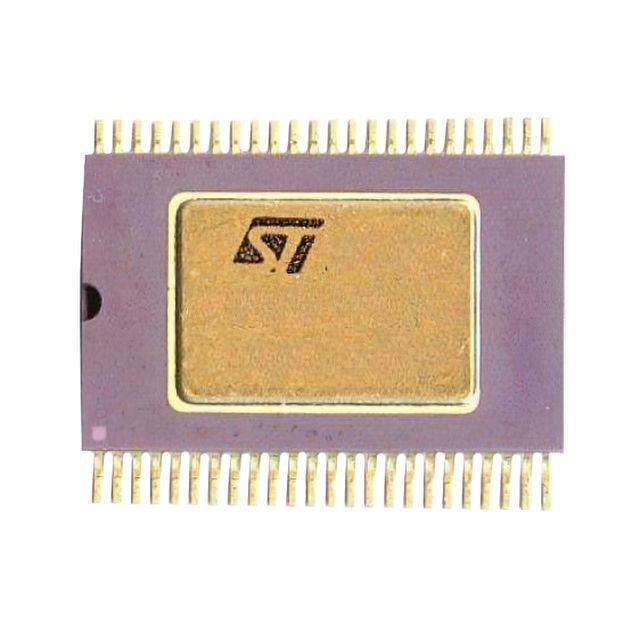

| Component Housing Style | 48-BCSOP (0.488", 12.40mm Width) | |
| Vendor Package Type | 48-SO | |
| Attachment Mounting Style | Surface Mount | |
| Quality Grade Level | - | |
| Certification Qualification | - |
Description
Utilizes a Pipelined architecture to improve effectiveness. Configured in a manner identified as MUX-S/H-ADC. Operates through a data interface specified at Parallel. Equipped with features categorized as Internal Oscillator. Configured with Differential input type for diverse applications. Mounting configuration Surface Mount for structural stability. Number of A/D converters 1 for transforming analog signals into digital. Overall bits 14 ensuring digital precision. The total number of converters is 1 for power or signal transformation. Overall inputs 1 for sensors or equipment. Temperature range -55°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Strip for safeguarding or transporting components. Style of the enclosure/case 48-BCSOP (0.488", 12.40mm Width) that offers mechanical and thermal protection. Type of package 48-SO that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Sample/hold to ADC ratio 1:1 for precise circuits. Kind of reference External, Internal utilized for component identification. Signal capture rate of 20M. Supplier package type 48-SO for component selection. Voltage supply 2.3V ~ 2.7V for the analog section of circuits. Voltage supplied to digital components 4.75V ~ 5.25V.
