Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tube | |
| Availability Status | Obsolete | |
| Data Bit Width | 12 | |
| Conversion Samples per Second | 40k | |
| Signal Input Quantity | 2 | |
| Entry Signal Category | Single Ended | |
| Data Link Protocol | Parallel | |
| Setup Arrangement | ADC | |
| Sample Hold to ADC Ratio | - | |
| Analog-to-Digital Converter Count | 1 | |
| System Design Structure | SAR | |
| Voltage Reference Source | External, Internal | |
| Analog Section Voltage | ±11.4V ~ 16.5V | |
| Digital Core Voltage | 5V | |
| Key Product Highlights | Selectable Address | |
| Ambient Temp Range | 0°C ~ 75°C | |

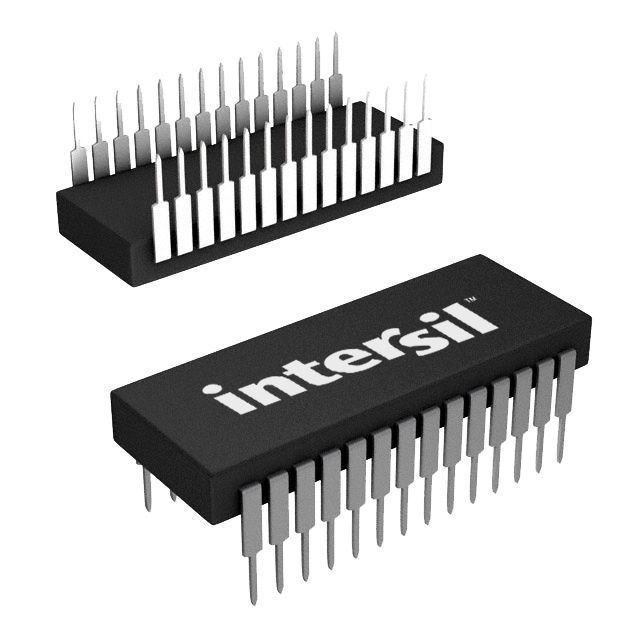

| Component Housing Style | 28-CDIP (0.600", 15.24mm) | |
| Vendor Package Type | 28-SBDIP | |
| Attachment Mounting Style | Through Hole | |
| Quality Grade Level | - | |
| Certification Qualification | - |
Description
Utilizes a SAR architecture to improve effectiveness. Configured in a manner identified as ADC. Operates through a data interface specified at Parallel. Equipped with features categorized as Selectable Address. Configured with Single Ended input type for diverse applications. Mounting configuration Through Hole for structural stability. Number of A/D converters 1 for transforming analog signals into digital. Overall bits 12 ensuring digital precision. The total number of converters is 1 for power or signal transformation. Overall inputs 2 for sensors or equipment. Temperature range 0°C ~ 75°C for environmental conditions impacting thermal efficiency. Type of housing Tube for safeguarding or transporting components. Style of the enclosure/case 28-CDIP (0.600", 15.24mm) that offers mechanical and thermal protection. Type of package 28-SBDIP that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Kind of reference External, Internal utilized for component identification. Signal capture rate of 40k. Supplier package type 28-SBDIP for component selection. Voltage supply ±11.4V ~ 16.5V for the analog section of circuits. Voltage supplied to digital components 5V.
