Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tray | |
| Availability Status | Obsolete | |
| Data Bit Width | 14 | |
| Conversion Samples per Second | 125M | |
| Signal Input Quantity | 1 | |
| Entry Signal Category | Differential, Single Ended | |
| Data Link Protocol | JESD204A | |
| Setup Arrangement | S/H-ADC | |
| Sample Hold to ADC Ratio | 1:1 | |
| Analog-to-Digital Converter Count | 1 | |
| System Design Structure | Pipelined | |
| Voltage Reference Source | Internal | |
| Analog Section Voltage | 2.85V ~ 3.4V | |
| Digital Core Voltage | 1.65V ~ 1.95V | |
| Key Product Highlights | - | |
| Ambient Temp Range | -40°C ~ 85°C | |

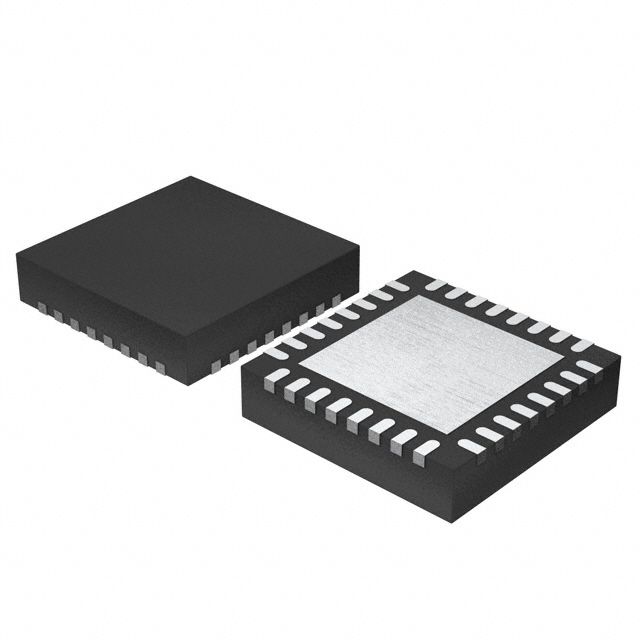

| Component Housing Style | 32-VFQFN Exposed Pad | |
| Vendor Package Type | 32-VFQFPN (5x5) | |
| Attachment Mounting Style | Surface Mount | |
| Quality Grade Level | - | |
| Certification Qualification | - |
Description
Utilizes a Pipelined architecture to improve effectiveness. Configured in a manner identified as S/H-ADC. Operates through a data interface specified at JESD204A. Configured with Differential, Single Ended input type for diverse applications. Mounting configuration Surface Mount for structural stability. Number of A/D converters 1 for transforming analog signals into digital. Overall bits 14 ensuring digital precision. The total number of converters is 1 for power or signal transformation. Overall inputs 1 for sensors or equipment. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Tray for safeguarding or transporting components. Style of the enclosure/case 32-VFQFN Exposed Pad that offers mechanical and thermal protection. Type of package 32-VFQFPN (5x5) that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Sample/hold to ADC ratio 1:1 for precise circuits. Kind of reference Internal utilized for component identification. Signal capture rate of 125M. Supplier package type 32-VFQFPN (5x5) for component selection. Voltage supply 2.85V ~ 3.4V for the analog section of circuits. Voltage supplied to digital components 1.65V ~ 1.95V.
