Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tube | |
| Availability Status | Obsolete | |
| Data Bit Width | 12 | |
| Conversion Samples per Second | 30 | |
| Signal Input Quantity | 1 | |
| Entry Signal Category | Differential | |
| Data Link Protocol | Parallel | |
| Setup Arrangement | ADC | |
| Sample Hold to ADC Ratio | - | |
| Analog-to-Digital Converter Count | 1 | |
| System Design Structure | Dual Slope | |
| Voltage Reference Source | External | |
| Analog Section Voltage | 5V | |
| Digital Core Voltage | 5V | |
| Key Product Highlights | - | |
| Ambient Temp Range | -25°C ~ 85°C | |

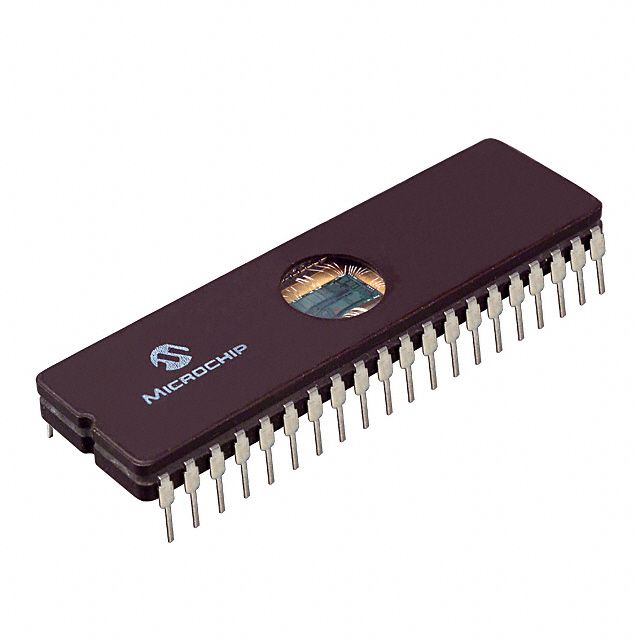

| Component Housing Style | 40-CDIP (0.600", 15.24mm) | |
| Vendor Package Type | 40-CERDIP | |
| Attachment Mounting Style | Through Hole | |
| Quality Grade Level | - | |
| Certification Qualification | - |
Description
Utilizes a Dual Slope architecture to improve effectiveness. Configured in a manner identified as ADC. Operates through a data interface specified at Parallel. Configured with Differential input type for diverse applications. Mounting configuration Through Hole for structural stability. Number of A/D converters 1 for transforming analog signals into digital. Overall bits 12 ensuring digital precision. The total number of converters is 1 for power or signal transformation. Overall inputs 1 for sensors or equipment. Temperature range -25°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Tube for safeguarding or transporting components. Style of the enclosure/case 40-CDIP (0.600", 15.24mm) that offers mechanical and thermal protection. Type of package 40-CERDIP that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Kind of reference External utilized for component identification. Signal capture rate of 30. Supplier package type 40-CERDIP for component selection. Voltage supply 5V for the analog section of circuits. Voltage supplied to digital components 5V.
