Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Obsolete | |
| Data Bit Width | 12 | |
| Conversion Samples per Second | 1M | |
| Signal Input Quantity | 4, 8 | |
| Entry Signal Category | Differential, Single Ended | |
| Data Link Protocol | SPI, DSP | |
| Setup Arrangement | MUX-S/H-ADC | |
| Sample Hold to ADC Ratio | 1:1 | |
| Analog-to-Digital Converter Count | 1 | |
| System Design Structure | SAR | |
| Voltage Reference Source | External | |
| Analog Section Voltage | 2.7V ~ 5.25V | |
| Digital Core Voltage | 2.7V ~ 5.25V | |
| Key Product Highlights | - | |
| Ambient Temp Range | -40°C ~ 85°C | |

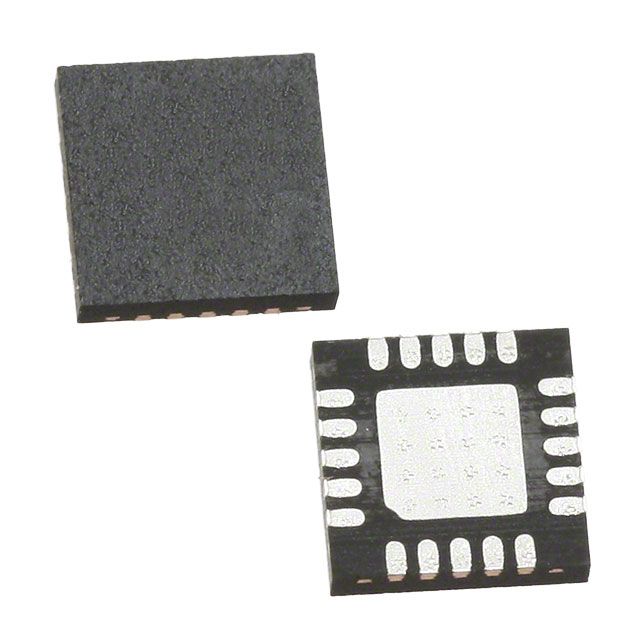

| Component Housing Style | 20-WFQFN Exposed Pad | |
| Vendor Package Type | 20-TQFN (4x4) | |
| Attachment Mounting Style | Surface Mount | |
| Quality Grade Level | - | |
| Certification Qualification | - |
Description
Utilizes a SAR architecture to improve effectiveness. Configured in a manner identified as MUX-S/H-ADC. Operates through a data interface specified at SPI, DSP. Configured with Differential, Single Ended input type for diverse applications. Mounting configuration Surface Mount for structural stability. Number of A/D converters 1 for transforming analog signals into digital. Overall bits 12 ensuring digital precision. The total number of converters is 1 for power or signal transformation. Overall inputs 4, 8 for sensors or equipment. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 20-WFQFN Exposed Pad that offers mechanical and thermal protection. Type of package 20-TQFN (4x4) that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Sample/hold to ADC ratio 1:1 for precise circuits. Kind of reference External utilized for component identification. Signal capture rate of 1M. Supplier package type 20-TQFN (4x4) for component selection. Voltage supply 2.7V ~ 5.25V for the analog section of circuits. Voltage supplied to digital components 2.7V ~ 5.25V.
