Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Obsolete | |
| Data Bit Width | 10 | |
| Conversion Samples per Second | 50k | |
| Signal Input Quantity | 8 | |
| Entry Signal Category | Differential, Single Ended | |
| Data Link Protocol | I2C | |
| Setup Arrangement | MUX-S/H-ADC | |
| Sample Hold to ADC Ratio | 1:1 | |
| Analog-to-Digital Converter Count | 1 | |
| System Design Structure | SAR | |
| Voltage Reference Source | External, Internal | |
| Analog Section Voltage | 2.7V ~ 5.25V | |
| Digital Core Voltage | 2.7V ~ 5.25V | |
| Key Product Highlights | Selectable Address | |
| Ambient Temp Range | -40°C ~ 85°C | |

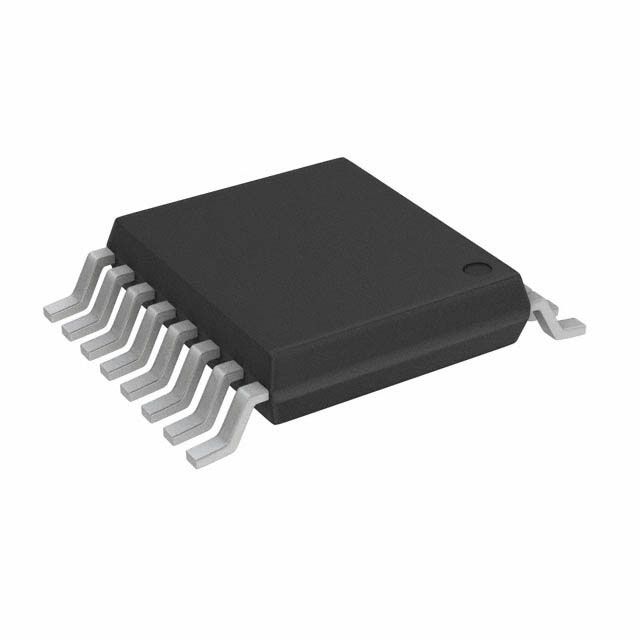

| Component Housing Style | 16-TSSOP (0.173", 4.40mm Width) | |
| Vendor Package Type | 16-TSSOP | |
| Attachment Mounting Style | Surface Mount | |
| Quality Grade Level | - | |
| Certification Qualification | - |
Description
Utilizes a SAR architecture to improve effectiveness. Configured in a manner identified as MUX-S/H-ADC. Operates through a data interface specified at I2C. Equipped with features categorized as Selectable Address. Configured with Differential, Single Ended input type for diverse applications. Mounting configuration Surface Mount for structural stability. Number of A/D converters 1 for transforming analog signals into digital. Overall bits 10 ensuring digital precision. The total number of converters is 1 for power or signal transformation. Overall inputs 8 for sensors or equipment. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 16-TSSOP (0.173", 4.40mm Width) that offers mechanical and thermal protection. Type of package 16-TSSOP that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Sample/hold to ADC ratio 1:1 for precise circuits. Kind of reference External, Internal utilized for component identification. Signal capture rate of 50k. Supplier package type 16-TSSOP for component selection. Voltage supply 2.7V ~ 5.25V for the analog section of circuits. Voltage supplied to digital components 2.7V ~ 5.25V.
