Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 3000 | ₹ 233.06000 | ₹ 6,99,180.00 |
| 1500 | ₹ 237.92000 | ₹ 3,56,880.00 |
| 500 | ₹ 247.85000 | ₹ 1,23,925.00 |
| 250 | ₹ 255.88000 | ₹ 63,970.00 |
| 100 | ₹ 269.21000 | ₹ 26,921.00 |
| 25 | ₹ 297.16000 | ₹ 7,429.00 |
| 10 | ₹ 322.64000 | ₹ 3,226.40 |
| 1 | ₹ 425.04000 | ₹ 425.04 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Circuit Switching Type | - | |
| Signal Mux/Demux Channels | 16:1 | |
| Electrical Circuit Count | 1 | |
| Maximum On Resistance | 300Ohm | |
| Inter-Channel Resistance Match | 10Ohm | |
| Single Positive Supply | 12V ~ 44V | |
| Dual Symmetric Supply | ±5V ~ 20V | |
| Max On/Off Switching Time | 250ns, 200ns | |
| 3dB Bandwidth | 114MHz | |
| Charge Transfer Effect | 1pC | |
| Off-State Channel Capacitance | 3pF, 13pF | |
| Max Off-State Leakage | 1nA | |
| Signal Interference Level | -85dB @ 1MHz | |
| Ambient Temp Range | -40°C ~ 125°C (TA) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

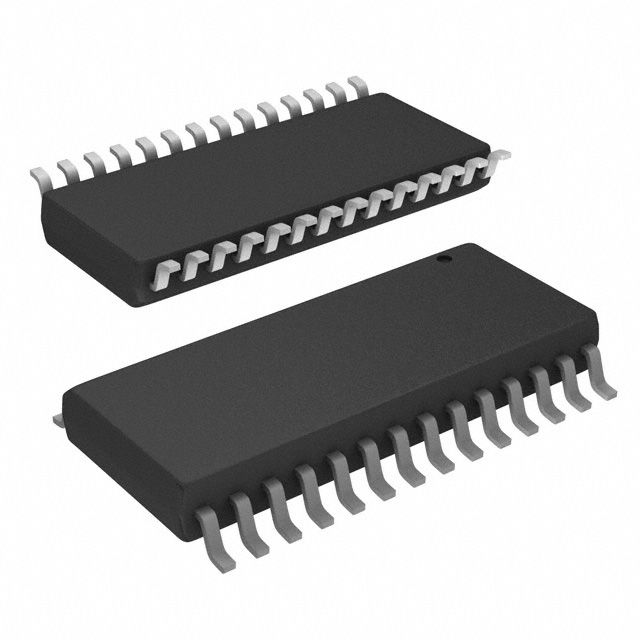

| Component Housing Style | 28-SOIC (0.295", 7.50mm Width) | |
| Vendor Package Type | 28-SOIC |
Description
Delivers a -3dB bandwidth of 114MHz to maintain reliable signal quality. Offers off-state channel capacitance of 3pF, 13pF. Ensures ΔRon alignment accuracy defined at 10Ohm. Provides charge injection capability rated at 1pC. Minimizes crosstalk with a level of -85dB @ 1MHz for improved signal quality. Highlights the maximum off-state leakage (IS(off)) rated at 1nA. Mounting configuration Surface Mount for structural stability. Mux/demux pathway 16:1 for signal control. The total number of circuits stands at 1 for electrical or electronic setups. Resistance during the on-state 300Ohm for effective conduction. Peak resistance in the on-state 300Ohm for electrical efficiency. Temperature range -40°C ~ 125°C (TA) for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 28-SOIC (0.295", 7.50mm Width) that offers mechanical and thermal protection. Type of package 28-SOIC that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Supplier package type 28-SOIC for component selection. Maximum on/off switching duration Ton/Toff 250ns, 200ns for timing accuracy. Dual voltage supply for circuits at V± ±5V ~ 20V. Single voltage supply for electronic devices at V+ 12V ~ 44V.
