Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 2500 | ₹ 162.40000 | ₹ 4,06,000.00 |
| 1000 | ₹ 183.02000 | ₹ 1,83,020.00 |
| 500 | ₹ 188.29000 | ₹ 94,145.00 |
| 250 | ₹ 194.70000 | ₹ 48,675.00 |
| 100 | ₹ 205.33000 | ₹ 20,533.00 |
| 25 | ₹ 227.61000 | ₹ 5,690.25 |
| 10 | ₹ 247.92000 | ₹ 2,479.20 |
| 1 | ₹ 329.01000 | ₹ 329.01 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Circuit Switching Type | SPST - NO | |
| Signal Mux/Demux Channels | 1:1 | |
| Electrical Circuit Count | 4 | |
| Maximum On Resistance | 80Ohm | |
| Inter-Channel Resistance Match | 2Ohm | |
| Single Positive Supply | 13V ~ 36V | |
| Dual Symmetric Supply | ±7V ~ 22V | |
| Max On/Off Switching Time | 220ns, 120ns | |
| 3dB Bandwidth | - | |
| Charge Transfer Effect | -1pC | |
| Off-State Channel Capacitance | 4pF, 4pF | |
| Max Off-State Leakage | 500pA | |
| Signal Interference Level | -95dB @ 100kHz | |
| Ambient Temp Range | -40°C ~ 85°C (TA) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

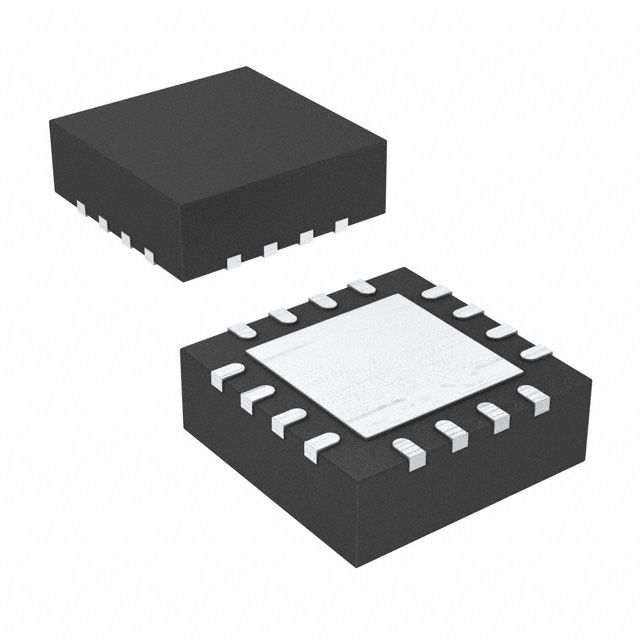

| Component Housing Style | 16-VQFN Exposed Pad | |
| Vendor Package Type | 16-QFN (4x4) |
Description
Offers off-state channel capacitance of 4pF, 4pF. Ensures ΔRon alignment accuracy defined at 2Ohm. Provides charge injection capability rated at -1pC. Minimizes crosstalk with a level of -95dB @ 100kHz for improved signal quality. Highlights the maximum off-state leakage (IS(off)) rated at 500pA. Mounting configuration Surface Mount for structural stability. Mux/demux pathway 1:1 for signal control. The total number of circuits stands at 4 for electrical or electronic setups. Resistance during the on-state 80Ohm for effective conduction. Peak resistance in the on-state 80Ohm for electrical efficiency. Temperature range -40°C ~ 85°C (TA) for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 16-VQFN Exposed Pad that offers mechanical and thermal protection. Type of package 16-QFN (4x4) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Supplier package type 16-QFN (4x4) for component selection. Circuit switch SPST - NO for functional operations. Maximum on/off switching duration Ton/Toff 220ns, 120ns for timing accuracy. Dual voltage supply for circuits at V± ±7V ~ 22V. Single voltage supply for electronic devices at V+ 13V ~ 36V.
