Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 2530 | ₹ 270.06000 | ₹ 6,83,251.80 |
| 1045 | ₹ 277.56000 | ₹ 2,90,050.20 |
| 550 | ₹ 284.31000 | ₹ 1,56,370.50 |
| 275 | ₹ 293.09000 | ₹ 80,599.75 |
| 110 | ₹ 307.68000 | ₹ 33,844.80 |
| 55 | ₹ 321.49000 | ₹ 17,681.95 |
| 10 | ₹ 369.41000 | ₹ 3,694.10 |
| 1 | ₹ 483.57000 | ₹ 483.57 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tube | |
| Availability Status | Active | |
| Circuit Switching Type | DPST - NO/NC | |
| Signal Mux/Demux Channels | 2:1 | |
| Electrical Circuit Count | 2 | |
| Maximum On Resistance | 50Ohm | |
| Inter-Channel Resistance Match | - | |
| Single Positive Supply | - | |
| Dual Symmetric Supply | ±15V | |
| Max On/Off Switching Time | 300ns, 250ns | |
| 3dB Bandwidth | - | |
| Charge Transfer Effect | 8pC | |
| Off-State Channel Capacitance | 14pF, 14pF | |
| Max Off-State Leakage | 1nA | |
| Signal Interference Level | -74dB @ 500kHz | |
| Ambient Temp Range | -40°C ~ 85°C (TA) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

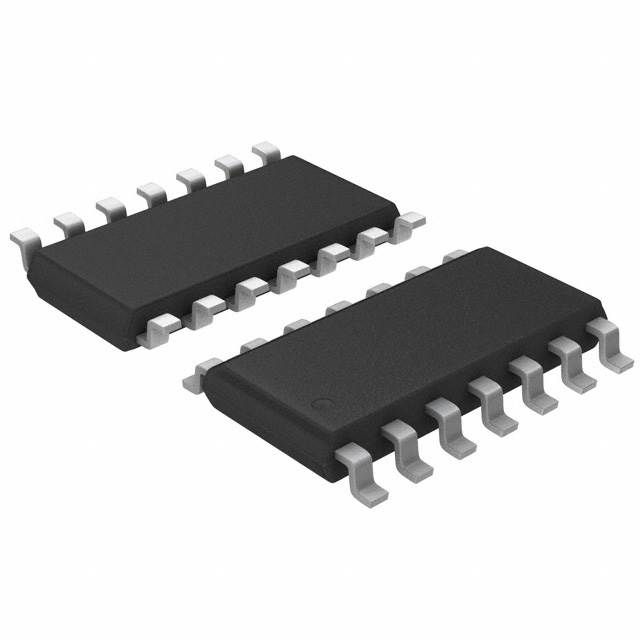

| Component Housing Style | 14-SOIC (0.154", 3.90mm Width) | |
| Vendor Package Type | 14-SOIC |
Description
Offers off-state channel capacitance of 14pF, 14pF. Provides charge injection capability rated at 8pC. Minimizes crosstalk with a level of -74dB @ 500kHz for improved signal quality. Highlights the maximum off-state leakage (IS(off)) rated at 1nA. Mounting configuration Surface Mount for structural stability. Mux/demux pathway 2:1 for signal control. The total number of circuits stands at 2 for electrical or electronic setups. Resistance during the on-state 50Ohm for effective conduction. Peak resistance in the on-state 50Ohm for electrical efficiency. Temperature range -40°C ~ 85°C (TA) for environmental conditions impacting thermal efficiency. Type of housing Tube for safeguarding or transporting components. Style of the enclosure/case 14-SOIC (0.154", 3.90mm Width) that offers mechanical and thermal protection. Type of package 14-SOIC that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Supplier package type 14-SOIC for component selection. Circuit switch DPST - NO/NC for functional operations. Maximum on/off switching duration Ton/Toff 300ns, 250ns for timing accuracy. Dual voltage supply for circuits at V± ±15V.
