Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 2500 | ₹ 54.57000 | ₹ 1,36,425.00 |
| 1000 | ₹ 63.52000 | ₹ 63,520.00 |
| 500 | ₹ 65.73000 | ₹ 32,865.00 |
| 250 | ₹ 68.41000 | ₹ 17,102.50 |
| 100 | ₹ 72.87000 | ₹ 7,287.00 |
| 25 | ₹ 82.21000 | ₹ 2,055.25 |
| 10 | ₹ 90.63000 | ₹ 906.30 |
| 1 | ₹ 124.44000 | ₹ 124.44 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Circuit Switching Type | SPDT | |
| Signal Mux/Demux Channels | 1:2 | |
| Electrical Circuit Count | 4 | |
| Maximum On Resistance | 550mOhm | |
| Inter-Channel Resistance Match | 50mOhm | |
| Single Positive Supply | 1.8V ~ 5.5V | |
| Dual Symmetric Supply | - | |
| Max On/Off Switching Time | 60µs, 1µs | |
| 3dB Bandwidth | 310MHz | |
| Charge Transfer Effect | -19pC | |
| Off-State Channel Capacitance | 14.5pF | |
| Max Off-State Leakage | 1nA | |
| Signal Interference Level | -89dB @ 100kHz | |
| Ambient Temp Range | -40°C ~ 85°C | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

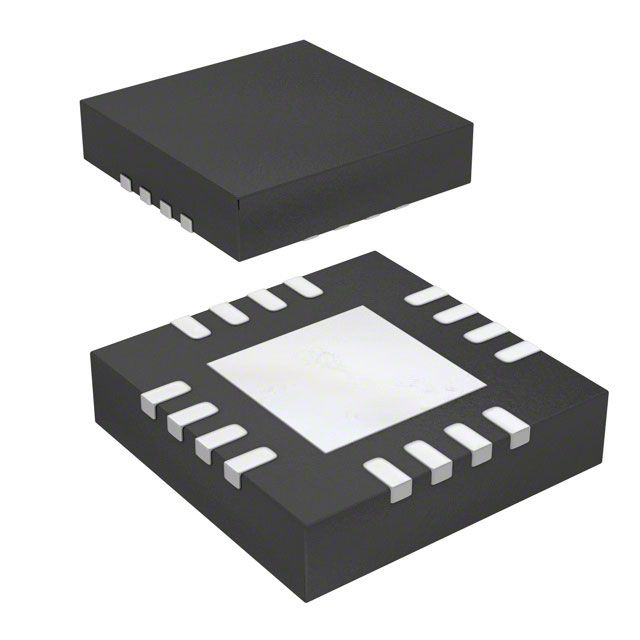

| Component Housing Style | 16-VFQFN Exposed Pad | |
| Vendor Package Type | 16-QFN (3x3) |
Description
Delivers a -3dB bandwidth of 310MHz to maintain reliable signal quality. Offers off-state channel capacitance of 14.5pF. Ensures ΔRon alignment accuracy defined at 50mOhm. Provides charge injection capability rated at -19pC. Minimizes crosstalk with a level of -89dB @ 100kHz for improved signal quality. Highlights the maximum off-state leakage (IS(off)) rated at 1nA. Mounting configuration Surface Mount for structural stability. Mux/demux pathway 1:2 for signal control. The total number of circuits stands at 4 for electrical or electronic setups. Resistance during the on-state 550mOhm for effective conduction. Peak resistance in the on-state 550mOhm for electrical efficiency. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 16-VFQFN Exposed Pad that offers mechanical and thermal protection. Type of package 16-QFN (3x3) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Supplier package type 16-QFN (3x3) for component selection. Circuit switch SPDT for functional operations. Maximum on/off switching duration Ton/Toff 60µs, 1µs for timing accuracy. Single voltage supply for electronic devices at V+ 1.8V ~ 5.5V.
