Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 3000 | ₹ 290.14000 | ₹ 8,70,420.00 |
Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 3000 | ₹ 291.36000 | ₹ 8,74,080.00 |
| 1000 | ₹ 301.15000 | ₹ 3,01,150.00 |
| 500 | ₹ 309.07000 | ₹ 1,54,535.00 |
| 250 | ₹ 318.70000 | ₹ 79,675.00 |
| 100 | ₹ 334.67000 | ₹ 33,467.00 |
| 25 | ₹ 368.17000 | ₹ 9,204.25 |
| 10 | ₹ 398.62000 | ₹ 3,986.20 |
| 1 | ₹ 520.50000 | ₹ 520.50 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Circuit Switching Type | SPST - NC | |
| Signal Mux/Demux Channels | 1:1 | |
| Electrical Circuit Count | 4 | |
| Maximum On Resistance | 3.1Ohm | |
| Inter-Channel Resistance Match | 100mOhm | |
| Single Positive Supply | 4.5V ~ 36V | |
| Dual Symmetric Supply | ±4.5V ~ 18V | |
| Max On/Off Switching Time | 180ns, 200ns | |
| 3dB Bandwidth | 50MHz | |
| Charge Transfer Effect | 78pC | |
| Off-State Channel Capacitance | 28pF, 45pF | |
| Max Off-State Leakage | 1nA | |
| Signal Interference Level | -93dB @ 1MHz | |
| Ambient Temp Range | -40°C ~ 125°C (TA) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

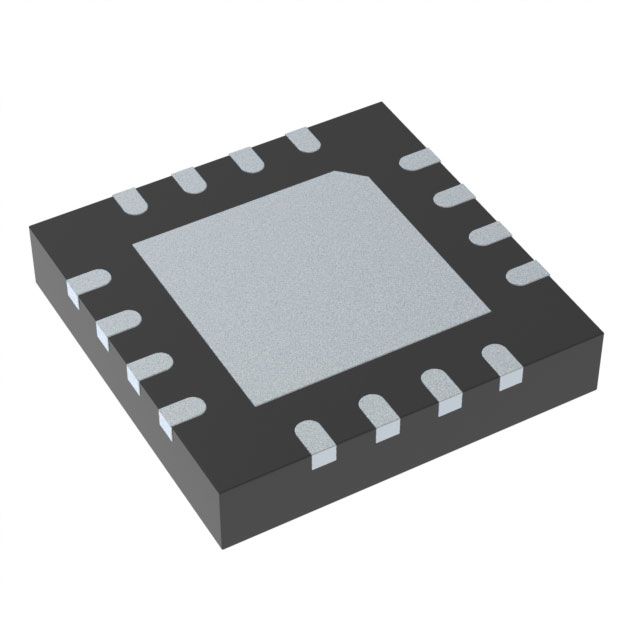

| Component Housing Style | 16-WQFN Exposed Pad | |
| Vendor Package Type | 16-WQFN (4x4) |
Description
Delivers a -3dB bandwidth of 50MHz to maintain reliable signal quality. Offers off-state channel capacitance of 28pF, 45pF. Ensures ΔRon alignment accuracy defined at 100mOhm. Provides charge injection capability rated at 78pC. Minimizes crosstalk with a level of -93dB @ 1MHz for improved signal quality. Highlights the maximum off-state leakage (IS(off)) rated at 1nA. Mounting configuration Surface Mount for structural stability. Mux/demux pathway 1:1 for signal control. The total number of circuits stands at 4 for electrical or electronic setups. Resistance during the on-state 3.1Ohm for effective conduction. Peak resistance in the on-state 3.1Ohm for electrical efficiency. Temperature range -40°C ~ 125°C (TA) for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 16-WQFN Exposed Pad that offers mechanical and thermal protection. Type of package 16-WQFN (4x4) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Supplier package type 16-WQFN (4x4) for component selection. Circuit switch SPST - NC for functional operations. Maximum on/off switching duration Ton/Toff 180ns, 200ns for timing accuracy. Dual voltage supply for circuits at V± ±4.5V ~ 18V. Single voltage supply for electronic devices at V+ 4.5V ~ 36V.
