Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 5000 | ₹ 136.10000 | ₹ 6,80,500.00 |
| 2500 | ₹ 138.84000 | ₹ 3,47,100.00 |
| 1000 | ₹ 175.83000 | ₹ 1,75,830.00 |
| 500 | ₹ 180.93000 | ₹ 90,465.00 |
| 250 | ₹ 187.12000 | ₹ 46,780.00 |
| 100 | ₹ 197.40000 | ₹ 19,740.00 |
| 25 | ₹ 218.95000 | ₹ 5,473.75 |
| 10 | ₹ 238.55000 | ₹ 2,385.50 |
| 1 | ₹ 316.51000 | ₹ 316.51 |
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 261.66000 | ₹ 261.66 |
| 10 | ₹ 194.91000 | ₹ 1,949.10 |
| 25 | ₹ 178.00000 | ₹ 4,450.00 |
| 100 | ₹ 160.20000 | ₹ 16,020.00 |
| 250 | ₹ 151.30000 | ₹ 37,825.00 |
| 500 | ₹ 145.96000 | ₹ 72,980.00 |
| 1000 | ₹ 141.51000 | ₹ 1,41,510.00 |
| 2500 | ₹ 137.06000 | ₹ 3,42,650.00 |
| 5000 | ₹ 134.39000 | ₹ 6,71,950.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Circuit Switching Type | SPST - NO | |
| Signal Mux/Demux Channels | 1:1 | |
| Electrical Circuit Count | 1 | |
| Maximum On Resistance | 1.8Ohm | |
| Inter-Channel Resistance Match | - | |
| Single Positive Supply | 4.5V ~ 36V | |
| Dual Symmetric Supply | - | |
| Max On/Off Switching Time | 140ns, 150ns | |
| 3dB Bandwidth | 22MHz | |
| Charge Transfer Effect | -18pC | |
| Off-State Channel Capacitance | 45pF, 68pF | |
| Max Off-State Leakage | 650pA | |
| Signal Interference Level | - | |
| Ambient Temp Range | -40°C ~ 125°C (TA) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

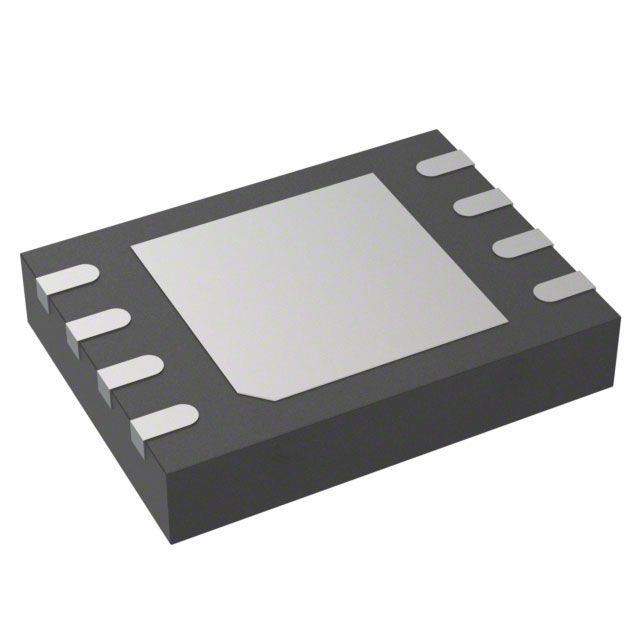

| Component Housing Style | 8-WFDFN Exposed Pad | |
| Vendor Package Type | 8-WSON (3x2) |
Description
Delivers a -3dB bandwidth of 22MHz to maintain reliable signal quality. Offers off-state channel capacitance of 45pF, 68pF. Provides charge injection capability rated at -18pC. Highlights the maximum off-state leakage (IS(off)) rated at 650pA. Mounting configuration Surface Mount for structural stability. Mux/demux pathway 1:1 for signal control. The total number of circuits stands at 1 for electrical or electronic setups. Resistance during the on-state 1.8Ohm for effective conduction. Peak resistance in the on-state 1.8Ohm for electrical efficiency. Temperature range -40°C ~ 125°C (TA) for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 8-WFDFN Exposed Pad that offers mechanical and thermal protection. Type of package 8-WSON (3x2) that preserves the integrity of the device. Product status Active concerning availability and lifecycle. Supplier package type 8-WSON (3x2) for component selection. Circuit switch SPST - NO for functional operations. Maximum on/off switching duration Ton/Toff 140ns, 150ns for timing accuracy. Single voltage supply for electronic devices at V+ 4.5V ~ 36V.
