Stock:
Distributor: 120
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 297 | ₹ 135.48000 | ₹ 40,237.56 |
| 146 | ₹ 143.18000 | ₹ 20,904.28 |
| 69 | ₹ 154.22000 | ₹ 10,641.18 |
| 22 | ₹ 165.22000 | ₹ 3,634.84 |
| 8 | ₹ 214.78000 | ₹ 1,718.24 |
| 2 | ₹ 330.44000 | ₹ 660.88 |
Stock:
Distributor: 118
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1509 | ₹ 154.90000 | ₹ 2,33,744.10 |
| 929 | ₹ 177.02000 | ₹ 1,64,451.58 |
| 1 | ₹ 442.55000 | ₹ 442.55 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Obsolete | |
| Circuit Switching Type | SPDT | |
| Signal Mux/Demux Channels | 2:1 | |
| Electrical Circuit Count | 8 | |
| Maximum On Resistance | 8Ohm | |
| Inter-Channel Resistance Match | 500mOhm | |
| Single Positive Supply | 1.65V ~ 3.6V | |
| Dual Symmetric Supply | - | |
| Max On/Off Switching Time | 9ns, 8.5ns | |
| 3dB Bandwidth | 1.3GHz | |
| Charge Transfer Effect | - | |
| Off-State Channel Capacitance | 4pF | |
| Max Off-State Leakage | - | |
| Signal Interference Level | -30dB @ 300MHz | |
| Ambient Temp Range | -40°C ~ 85°C (TA) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

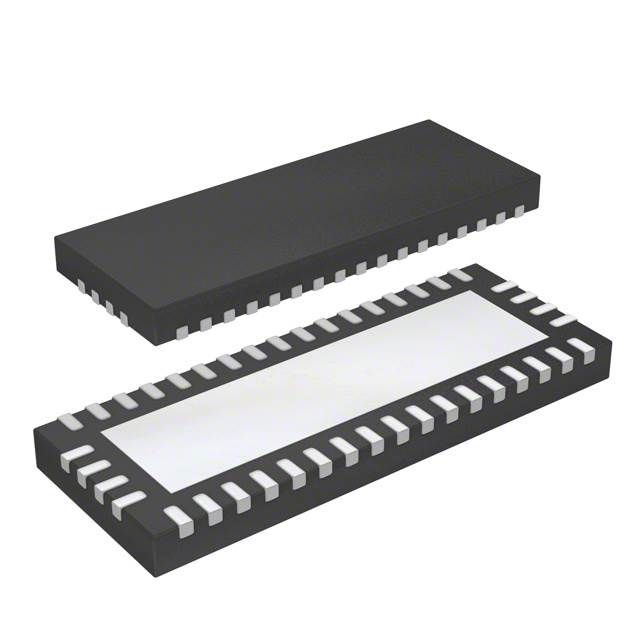

| Component Housing Style | 42-TQFN | |
| Vendor Package Type | 42-TQFN-EP (3.5x9) |
Description
Delivers a -3dB bandwidth of 1.3GHz to maintain reliable signal quality. Offers off-state channel capacitance of 4pF. Ensures ΔRon alignment accuracy defined at 500mOhm. Minimizes crosstalk with a level of -30dB @ 300MHz for improved signal quality. Mounting configuration Surface Mount for structural stability. Mux/demux pathway 2:1 for signal control. The total number of circuits stands at 8 for electrical or electronic setups. Resistance during the on-state 8Ohm for effective conduction. Peak resistance in the on-state 8Ohm for electrical efficiency. Temperature range -40°C ~ 85°C (TA) for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 42-TQFN that offers mechanical and thermal protection. Type of package 42-TQFN-EP (3.5x9) that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Supplier package type 42-TQFN-EP (3.5x9) for component selection. Circuit switch SPDT for functional operations. Maximum on/off switching duration Ton/Toff 9ns, 8.5ns for timing accuracy. Single voltage supply for electronic devices at V+ 1.65V ~ 3.6V.
