Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Obsolete | |
| Circuit Switching Type | SPDT | |
| Signal Mux/Demux Channels | 2:1 | |
| Electrical Circuit Count | 1 | |
| Maximum On Resistance | 300mOhm | |
| Inter-Channel Resistance Match | 3mOhm | |
| Single Positive Supply | 1.65V ~ 4.8V | |
| Dual Symmetric Supply | - | |
| Max On/Off Switching Time | 38ns, 17ns | |
| 3dB Bandwidth | 28MHz | |
| Charge Transfer Effect | 140pC | |
| Off-State Channel Capacitance | 30pF | |
| Max Off-State Leakage | 30nA | |
| Signal Interference Level | -69dB @ 100kHz | |
| Ambient Temp Range | -40°C ~ 85°C (TA) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

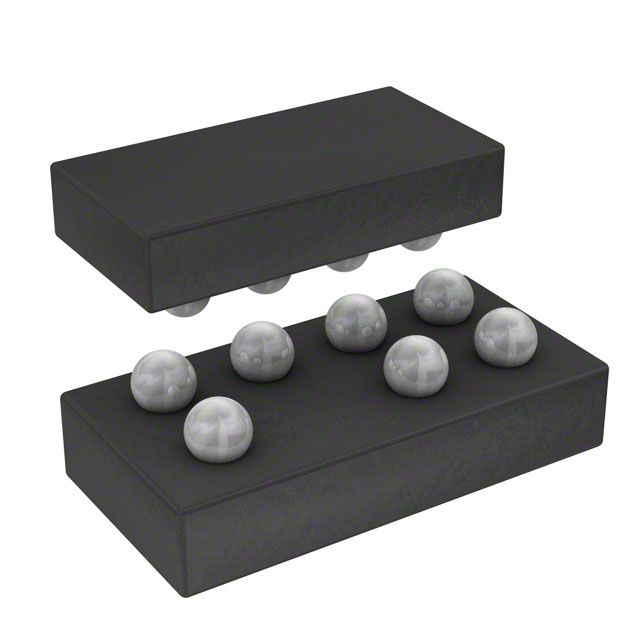

| Component Housing Style | 7-WFBGA, FCBGA | |
| Vendor Package Type | 7-FlipChip |
Description
Delivers a -3dB bandwidth of 28MHz to maintain reliable signal quality. Offers off-state channel capacitance of 30pF. Ensures ΔRon alignment accuracy defined at 3mOhm. Provides charge injection capability rated at 140pC. Minimizes crosstalk with a level of -69dB @ 100kHz for improved signal quality. Highlights the maximum off-state leakage (IS(off)) rated at 30nA. Mounting configuration Surface Mount for structural stability. Mux/demux pathway 2:1 for signal control. The total number of circuits stands at 1 for electrical or electronic setups. Resistance during the on-state 300mOhm for effective conduction. Peak resistance in the on-state 300mOhm for electrical efficiency. Temperature range -40°C ~ 85°C (TA) for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 7-WFBGA, FCBGA that offers mechanical and thermal protection. Type of package 7-FlipChip that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Supplier package type 7-FlipChip for component selection. Circuit switch SPDT for functional operations. Maximum on/off switching duration Ton/Toff 38ns, 17ns for timing accuracy. Single voltage supply for electronic devices at V+ 1.65V ~ 4.8V.
