Stock:
Distributor: 118
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 776 | ₹ 18.37000 | ₹ 14,255.12 |
| 195 | ₹ 22.96000 | ₹ 4,477.20 |
| 1 | ₹ 45.92000 | ₹ 45.92 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Obsolete | |
| Circuit Switching Type | SPST - NO | |
| Signal Mux/Demux Channels | 1:1 | |
| Electrical Circuit Count | 4 | |
| Maximum On Resistance | 80Ohm | |
| Inter-Channel Resistance Match | 5Ohm | |
| Single Positive Supply | 2V ~ 12V | |
| Dual Symmetric Supply | - | |
| Max On/Off Switching Time | 12ns, 18ns | |
| 3dB Bandwidth | 200MHz | |
| Charge Transfer Effect | - | |
| Off-State Channel Capacitance | 0.5pF, 5pF | |
| Max Off-State Leakage | 100nA | |
| Signal Interference Level | -60dB @ 1MHz | |
| Ambient Temp Range | -55°C ~ 125°C (TA) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Surface Mount | |

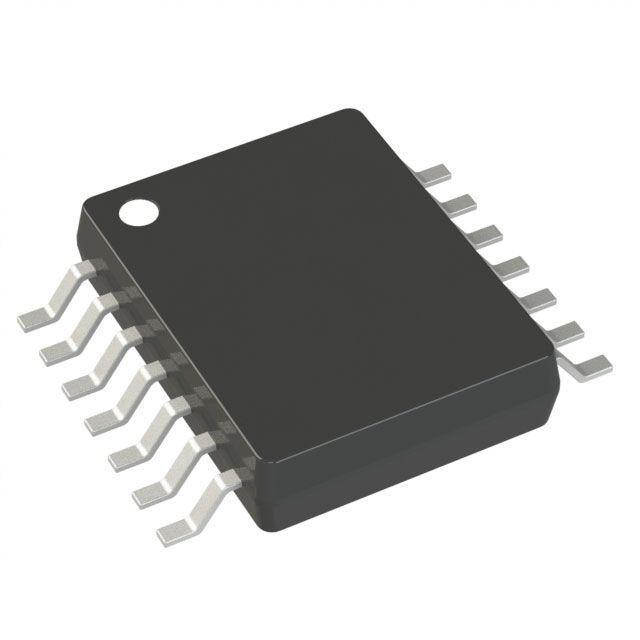

| Component Housing Style | 14-TSSOP (0.173", 4.40mm Width) | |
| Vendor Package Type | 14-TSSOP |
Description
Delivers a -3dB bandwidth of 200MHz to maintain reliable signal quality. Offers off-state channel capacitance of 0.5pF, 5pF. Ensures ΔRon alignment accuracy defined at 5Ohm. Minimizes crosstalk with a level of -60dB @ 1MHz for improved signal quality. Highlights the maximum off-state leakage (IS(off)) rated at 100nA. Mounting configuration Surface Mount for structural stability. Mux/demux pathway 1:1 for signal control. The total number of circuits stands at 4 for electrical or electronic setups. Resistance during the on-state 80Ohm for effective conduction. Peak resistance in the on-state 80Ohm for electrical efficiency. Temperature range -55°C ~ 125°C (TA) for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case 14-TSSOP (0.173", 4.40mm Width) that offers mechanical and thermal protection. Type of package 14-TSSOP that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Supplier package type 14-TSSOP for component selection. Circuit switch SPST - NO for functional operations. Maximum on/off switching duration Ton/Toff 12ns, 18ns for timing accuracy. Single voltage supply for electronic devices at V+ 2V ~ 12V.
