Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tube | |
| Availability Status | Obsolete | |
| Circuit Switching Type | SPST - NO | |
| Signal Mux/Demux Channels | 1:1 | |
| Electrical Circuit Count | 4 | |
| Maximum On Resistance | 120Ohm | |
| Inter-Channel Resistance Match | 6Ohm | |
| Single Positive Supply | 2V ~ 12V | |
| Dual Symmetric Supply | - | |
| Max On/Off Switching Time | 14ns, 24ns | |
| 3dB Bandwidth | 42MHz | |
| Charge Transfer Effect | - | |
| Off-State Channel Capacitance | 1pF, 5pF | |
| Max Off-State Leakage | 100nA | |
| Signal Interference Level | -50dB @ 1MHz | |
| Ambient Temp Range | -55°C ~ 125°C (TA) | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Through Hole | |

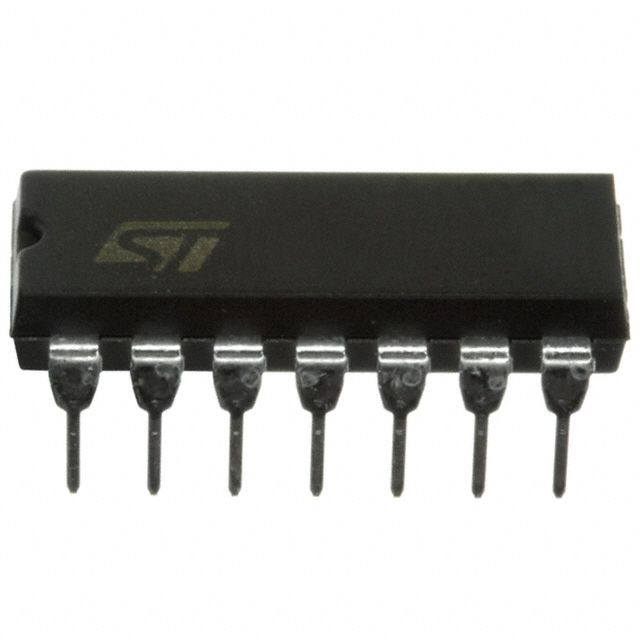

| Component Housing Style | 14-DIP (0.279", 7.10mm) | |
| Vendor Package Type | 14-DIP |
Description
Delivers a -3dB bandwidth of 42MHz to maintain reliable signal quality. Offers off-state channel capacitance of 1pF, 5pF. Ensures ΔRon alignment accuracy defined at 6Ohm. Minimizes crosstalk with a level of -50dB @ 1MHz for improved signal quality. Highlights the maximum off-state leakage (IS(off)) rated at 100nA. Mounting configuration Through Hole for structural stability. Mux/demux pathway 1:1 for signal control. The total number of circuits stands at 4 for electrical or electronic setups. Resistance during the on-state 120Ohm for effective conduction. Peak resistance in the on-state 120Ohm for electrical efficiency. Temperature range -55°C ~ 125°C (TA) for environmental conditions impacting thermal efficiency. Type of housing Tube for safeguarding or transporting components. Style of the enclosure/case 14-DIP (0.279", 7.10mm) that offers mechanical and thermal protection. Type of package 14-DIP that preserves the integrity of the device. Product status Obsolete concerning availability and lifecycle. Supplier package type 14-DIP for component selection. Circuit switch SPST - NO for functional operations. Maximum on/off switching duration Ton/Toff 14ns, 24ns for timing accuracy. Single voltage supply for electronic devices at V+ 2V ~ 12V.
